Repair Procedures: Removal

  1. Disconnect the negative (-) battery terminal.

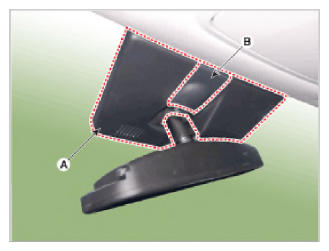

  2. Remove the front view camera unit cover (A).
    G13036031Courtesy of HYUNDAI MOTOR AMERICA

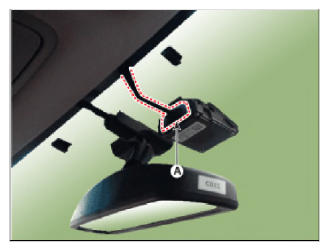

  3. Disconnect the front view camera unit connector (A).
    G13036032Courtesy of HYUNDAI MOTOR AMERICA

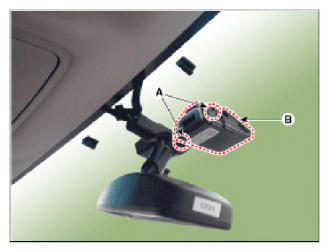

  4. Separate the fixed points (A) of coupler, remove the front view camera (B).
    G13036033Courtesy of HYUNDAI MOTOR AMERICA
    NOTE:
    • When separate the fixed points, be careful not to damage it.
