Door Outside Handle

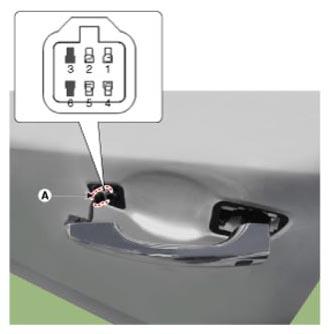

Disconnect the front door outside handle connector (A).

Courtesy of HYUNDAI MOTOR AMERICA

Check for continuity between terminals No 3 and No 6.

Courtesy of HYUNDAI MOTOR AMERICA

No	Description
1	Door antenna (+)
2	Pocket lamp LED (+)
3	Door lock/unlock button switch
4	Door antenna (-)
5	Pocket lamp LED (-)
6	Door lock/unlock button switch ground

Courtesy of HYUNDAI MOTOR AMERICA
