Rear Power Window Switch

  1. Disconnect the negative (-) battery terminal.
  2. Remove the rear door trim.

    (Refer to Body - "REAR DOOR TRIM ")

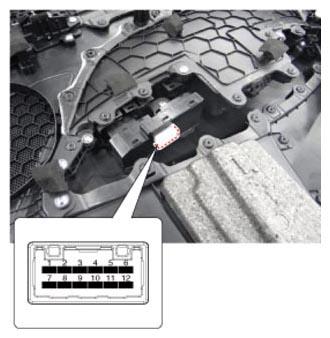

  3. Disconnect the power mirror switch connector from the door trim.
    G12975300Courtesy of HYUNDAI MOTOR AMERICA
  4. Check for continuity between the terminals in each switch position as shown below.

    [Rear Power Window Switch Inspection]

    G12975301Courtesy of HYUNDAI MOTOR AMERICA

    [Rear Sear Heater Switch Inspection]

    G12975302Courtesy of HYUNDAI MOTOR AMERICA
