Repair Procedures: Disassembly

To reassembly, reverse the disassembly procedure.

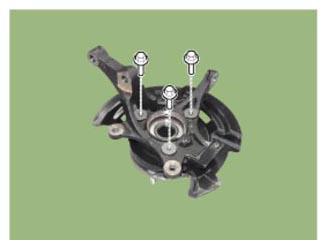

Tightening torque:

49.0 ~ 58.8 N.m (5.0 ~ 6.0 kgf.m, 36.2 ~ 43.4 lb-ft)

Courtesy of HYUNDAI MOTOR AMERICA

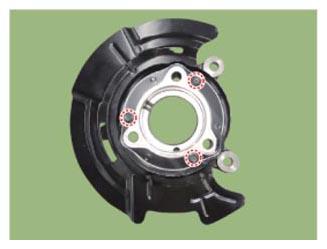

Loosen the mounting bolts and then remove the dust cover.
Tightening torque:

3.9 ~ 5.9 N.m (0.4 ~ 0.6 kgf.m, 2.9 ~ 4.3 lb-ft)

Courtesy of HYUNDAI MOTOR AMERICA
Reassembly in the reverse order of disassembly.
