Smart Key Unit
- Disconnect the negative (-) battery terminal.
- Remove the glove box.
(Refer to Body - "GLOVE BOX UPPER COVER ASSEMBLY ")
- Remove the Body Control Module.
(Refer to Body Electrical System - "BCM (BODY CONTROL MODULE) ")

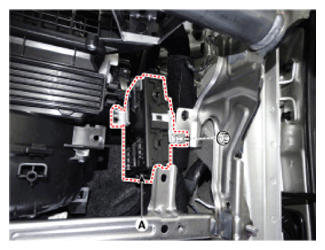

- Detach the smart key unit (A) after loosening the nut.

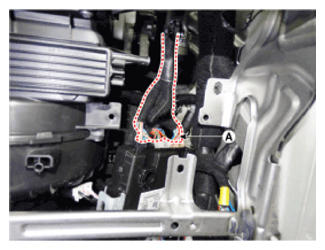

- Remove the smart key unit after disconnecting the connectors (A).
