Repair Procedures: Installation

  1. To install, reverse the removal procedure.
NOTE:
  • Before installing, check that the shift lever and Manual Control Lever are placed in the "N" position.
CAUTION:

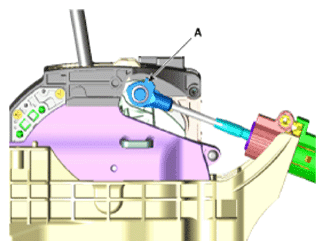

  • When assembling shift cable, the projection (A) must face upwards.
    G12727522Courtesy of HYUNDAI MOTOR AMERICA

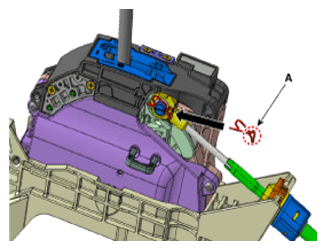

  • When assembling the snap pin, be careful about the correct direction.
    • The band portion (A) must point to the front of the vehicle.
    • The band portion (A) must point outwards.
      G12727523Courtesy of HYUNDAI MOTOR AMERICA

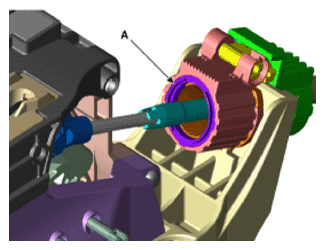

  • After installing the shift cable socket, check portion (A) to see if it projects outwards from the cap.
G12727524Courtesy of HYUNDAI MOTOR AMERICA
