Repair Procedures: Removal
WARNING: This page is about a different variant/trim than selected.
- Remove the coupling assembly.
(Refer to REMOVAL 4 Wheel Drive (4WD) System - "Coupling Assembly")
NOTE:- Keep it level with the sticker (A) on the top of the coupling.

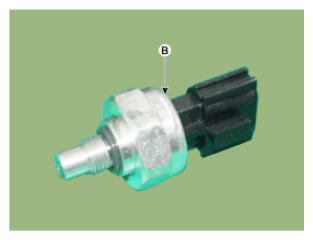

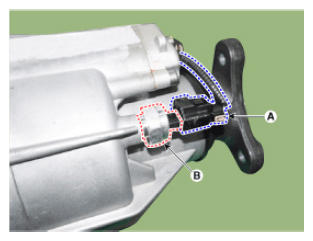

- Remove the extension cable (A) and then loosening the pressure sensor (B).
Tightening torque:
8.8 - 10.8 N.m (0.9 - 1.1 kgf.m, 6.5 - 7.9 lb-ft)
