Repair Procedures: Replacement
WARNING: This page is about a different variant/trim than selected.
Information
| Change | Capacity | Specification | |
|---|---|---|---|
| Normal Use | Severe Use | Oil level must be up to fill the hole 0.45L ± 0.0225L (0.12 U.S gal, 0.48 U.S qt, 0.39 lmp qt ± 0.01 U.S gal, 0.03 U.S qt, 0.02 lmp qt) | Hypoid gear oil API GL-5, MS 517-15 GTC 75W/85 (SK HCT-5 GEAR OIL 75W/85 or EQUIVALENT) |
| No service required | 120, 000 km (80, 000 miles) | ||
Severe driving conditions
- Driving in dusty, rough roads
- Drivng in mountains areas
- Driving for patrol car, taxi, commercial car or vehicle towing
- Driving over 170Km/h
* Transfer oil should be replaced if the transfer assembly is fall into the water.
- Remove the under cover.
(Refer to Engine Mechanical System - "ENGINE ROOM UNDER COVER ")

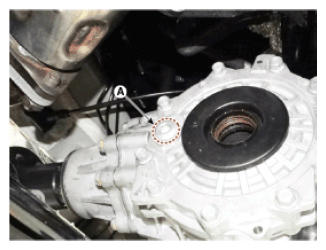

- Drain the transfer oil after loosening the drain plug (A).
- Install the drain plug with new gasket.
Tightening torque:
39.2 - 58.8 N.m (4.0 - 6.0 kgf.m, 28.9 - 43.4 lb-ft)

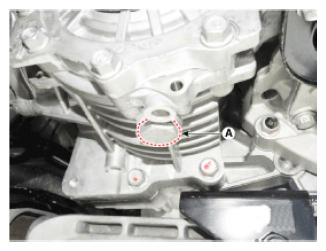

- Refill the transfer specified oil after loosening the filler plug (A).
Specified oil: Hypoid gear oil, MS 517-15 GTC 75/85 (GL-5)
Capacity: Oil level must be up to fill the hole.
0.45L ± 0.0225L (0.12 U.S gal, 0.48 U.S qt, 0.39 lmp qt ± 0.01 U.S gal, 0.03 U.S qt, 0.02 lmp qt)
- Install the filler plug with new gasket.
Tightening torque:
39.2 - 58.8 N.m (4.0 - 6.0 kgf.m, 28.9 - 43.4 lb-ft)
- Install the under cover.
(Refer to Engine Mechanical System - "ENGINE ROOM UNDER COVER ")
