Rear Power Window Motor: Notes

  1. Disconnect the negative (-) battery terminal.
  2. Remove the rear door trim.

    (Refer to "REAR DOOR TRIM ")

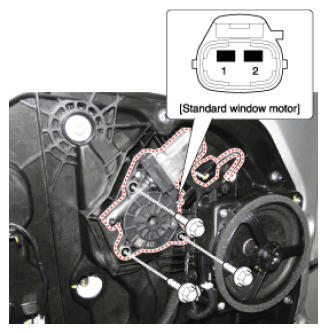

  3. Disconnect the motor connector from the motor.
    G12810240Courtesy of HYUNDAI MOTOR AMERICA
  4. Connect the motor terminals No. 1 and No. 2 directly to battery voltage (12V) and check that the motor operates smoothly.

    If the operation is abnormal, replace the motor.
