Repair Procedures: Disassembly

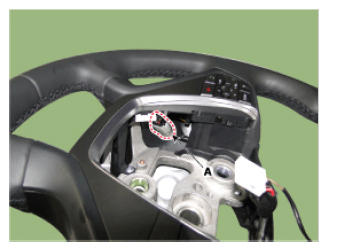

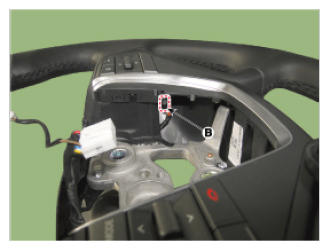

  1. Disconnect the Steering Wheel Remote Switch Connector (A) & (B).
    G12793833Courtesy of HYUNDAI MOTOR AMERICA
    G12793834Courtesy of HYUNDAI MOTOR AMERICA

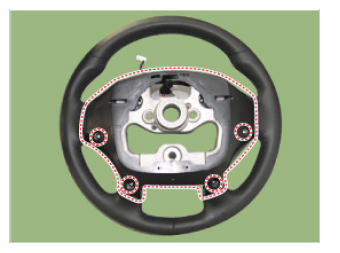

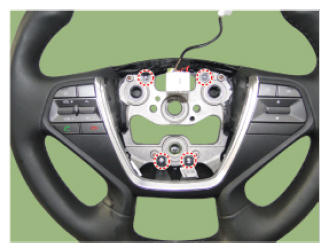

  2. Loosen the screw and then remove the lower cover.
    G12793835Courtesy of HYUNDAI MOTOR AMERICA
    G12793836Courtesy of HYUNDAI MOTOR AMERICA
  3. Separate the remote control switch from the steering wheel.
  4. Reassembly is reverse of the disassembly.
