Tailgate Open Switch

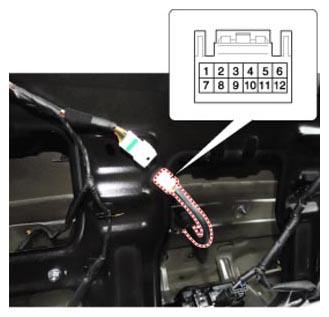

  1. Check for continuity between the tailgate latch terminals.
    G13033315Courtesy of HYUNDAI MOTOR AMERICA
  2. If continuity is not specified, inspect the switch
    G13033316Courtesy of HYUNDAI MOTOR AMERICA
