Repair Procedures: Removal
- Turn OFF ignition switch and disconnect the negative (-) battery cable.
- Remove the air cleaner assembly and air duct. (Refer to Engine Mechanical System - "AIR CLEANER ")
- Remove the battery and battery tray. (Refer to Engine Electrical System - "BATTERY ")
- Remove the engine control module (ECM). (Refer to Engine Control System - "ECM ")

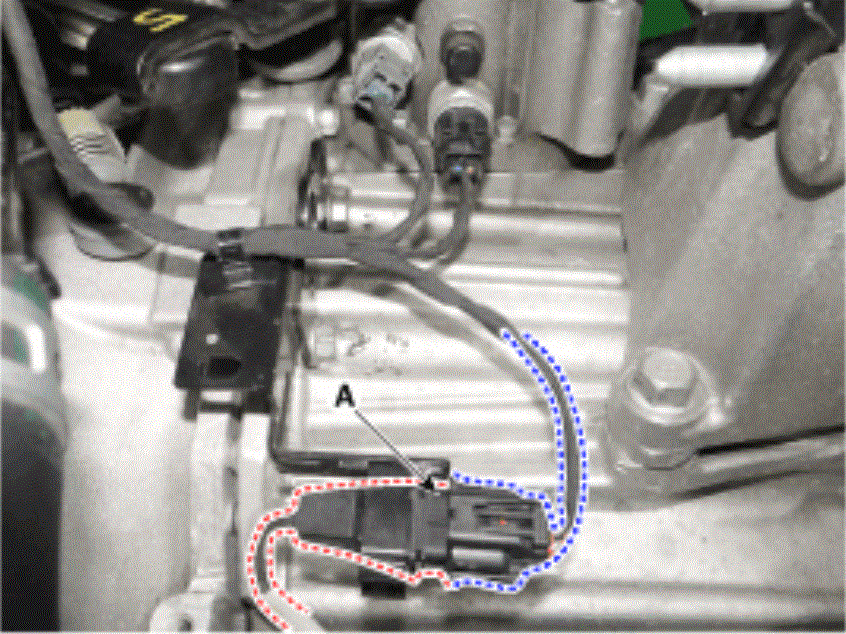

- Disconnect the vehicle speed sensor connector (A).
- Remove the under cover. (Refer to Engine Mechanical System - "ENGINE ROOM UNDER COVER ")

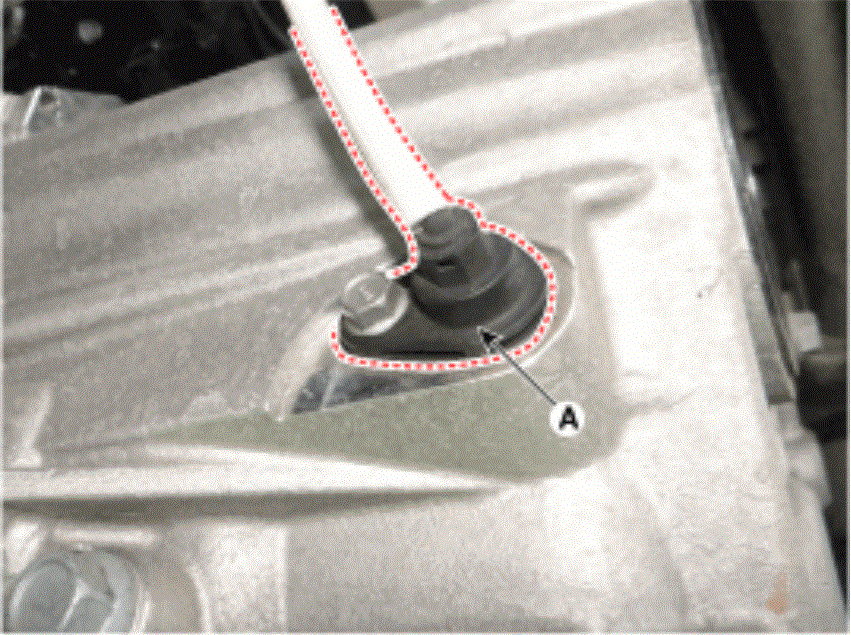

- Remove the vehicle speed sensor (A).
