Repair Procedures: Replacement

Remove the rear wheel hub bearing assembly. (Refer to Driveshaft and Axle - "REAR HUB - CARRIER ")
Fix the rear hub bearing assembly (A) on the vise.
NOTE: When fixing on the vise, use a cloth so not to damage the hub bearing assembly.
Be careful if excessive force for fixing on the vise may damage the hub bearing assembly.

Courtesy of HYUNDAI MOTOR AMERICA
Check the direction of the sensor cap (A).

Courtesy of HYUNDAI MOTOR AMERICA

Remove the sensor cap by hammering on a gap between sensor cap and hub bearing assembly using a scraper (A).

Courtesy of HYUNDAI MOTOR AMERICA

NOTE: In order to widen the gap little by little, hammer around the bearing cap 10-20 times

Courtesy of HYUNDAI MOTOR AMERICA

When removing the sensor cap, remove it in a straight direction not to damage the ton wheel or encoder.

Check if there is distortion or damage to the tone wheel encoder (A).

Courtesy of HYUNDAI MOTOR AMERICA

NOTE: Check if damage to the tone wheel or encoder after removing the sensor cap and replace the hub bearing if it was deformed.

If the tone wheel is deformed, if may trigger the MIL ON or other problems.

Courtesy of HYUNDAI MOTOR AMERICA

Position the sensor cap to the same direction of sensor cap (A) as you check before removing.

Courtesy of HYUNDAI MOTOR AMERICA

NOTE: Before installing the sensor cap, do not let any foreign material and contaminant in the hub bearing (A) assembly.

Courtesy of HYUNDAI MOTOR AMERICA

Install the sensor cap (A) with the special service tool (09527AL200).

Courtesy of HYUNDAI MOTOR AMERICA

NOTE: Hammer until there is no gap between the SST and hub bearing assembly and install the sensor cap.

Courtesy of HYUNDAI MOTOR AMERICA

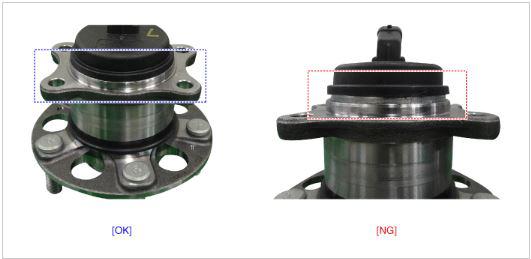

Be careful not to tilt to one side when installing the sensor cap as it may damage the tone wheel or encoder.

When installing sensor cap, hammer it until the gap closes between the sensor cap and hub bearing assembly.

Courtesy of HYUNDAI MOTOR AMERICA
