Smart Key Unit

  1. Disconnect the negative (-) battery terminal.
  2. Remove the glove box upper cover assembly.

    (Refer to Body - "GLOVE BOX UPPER COVER ASSEMBLY ")

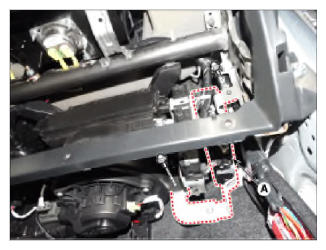

  3. Remove the smart key unit (A)
    G13054240Courtesy of HYUNDAI MOTOR AMERICA

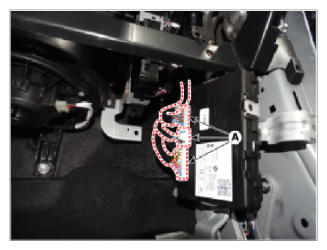

  4. Disconnect the smart key unit connectors (A).
    G13054241Courtesy of HYUNDAI MOTOR AMERICA
