Smart Key Unit

  1. Disconnect the negative (-) battery terminal.
  2. Remove the glove box.

    (Refer to Body - "GLOVE BOX UPPER COVER HOUSING ")

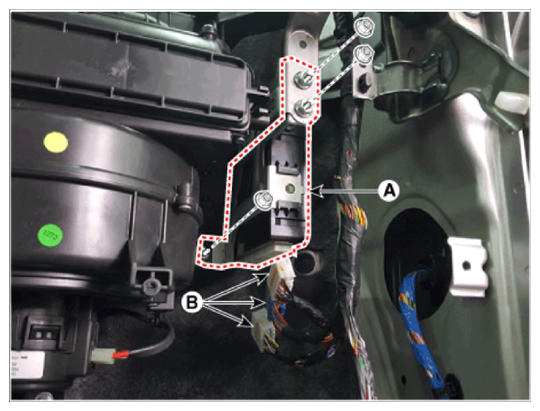

  3. Remove the smart key unit (A) after loosening the nuts and disconnecting the connectors (B).
    G14078621Courtesy of HYUNDAI MOTOR AMERICA
