Repair Procedures: Removal

  1. Disconnect the negative (-) battery terminal.
  2. Remove the steering wheel assembly.

    (Refer to Steering System - "STEERING WHEEL ")

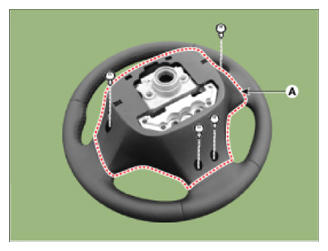

  3. Remove the steering back cover (A).
    G14081477Courtesy of HYUNDAI MOTOR AMERICA

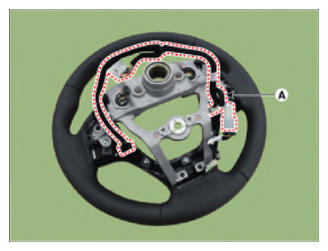

  4. Remove the steering remote control connector (A).
    G14081478Courtesy of HYUNDAI MOTOR AMERICA

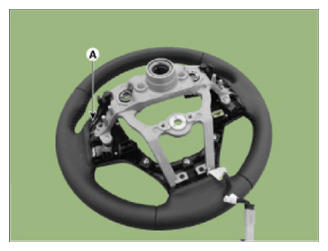

  5. Remove the steering remote control after loosening the screws.
    G14081479Courtesy of HYUNDAI MOTOR AMERICA
