Repair Procedures: Removal

  1. Disconnect the negative (-) battery terminal.

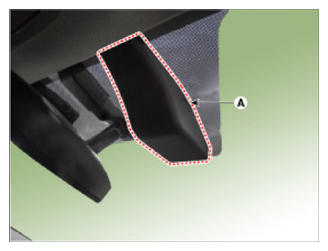

  2. Remove the front view camera unit cover (A).
    G14083783Courtesy of HYUNDAI MOTOR AMERICA

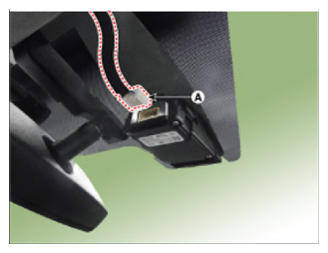

  3. Disconnect the front view camera unit connector (A).
    G14083784Courtesy of HYUNDAI MOTOR AMERICA

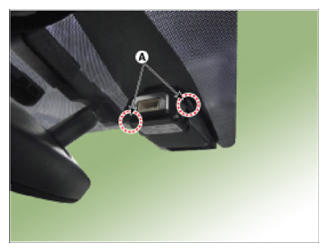

  4. Remove the front view camera unit after disengaging the mounting bracket (A).
    G14083785Courtesy of HYUNDAI MOTOR AMERICA
