Compensation Requirement and Procedure

  1. Simultaneous replacement of AWD ECU (Controller) and coupling

    Does not require compensation.

  2. Replacement of coupling only
    1. Reset the AWD ECU's (Controller) clutch learning.

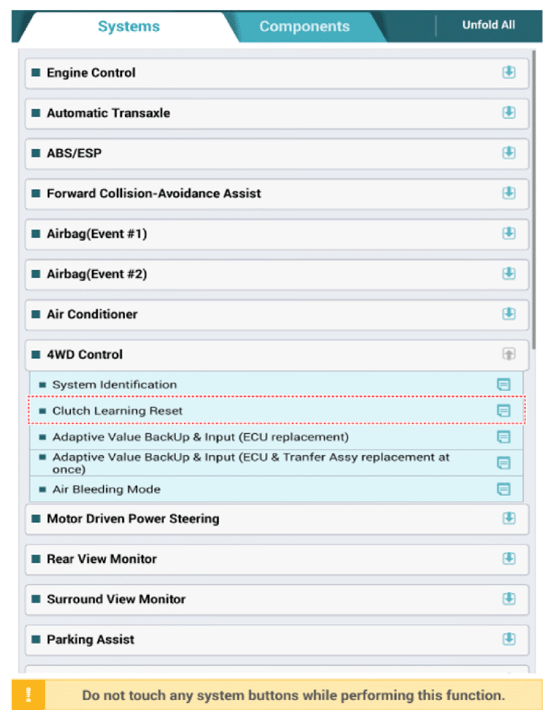

      G14424394Courtesy of HYUNDAI MOTOR AMERICA

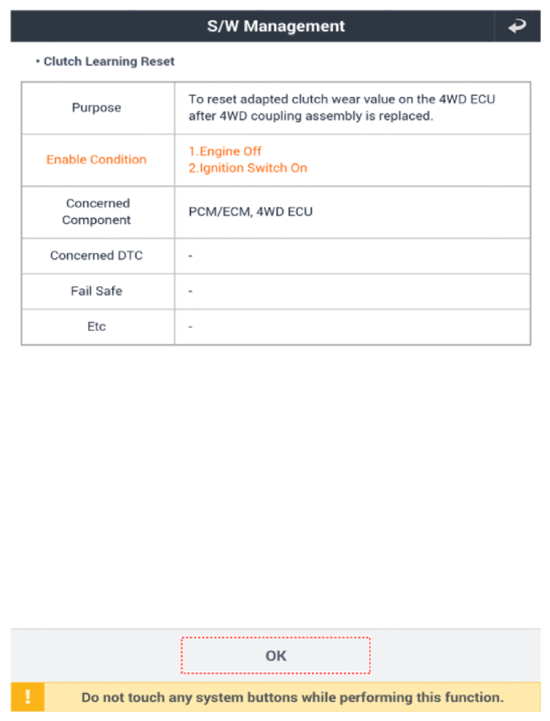

      G14424395Courtesy of HYUNDAI MOTOR AMERICA

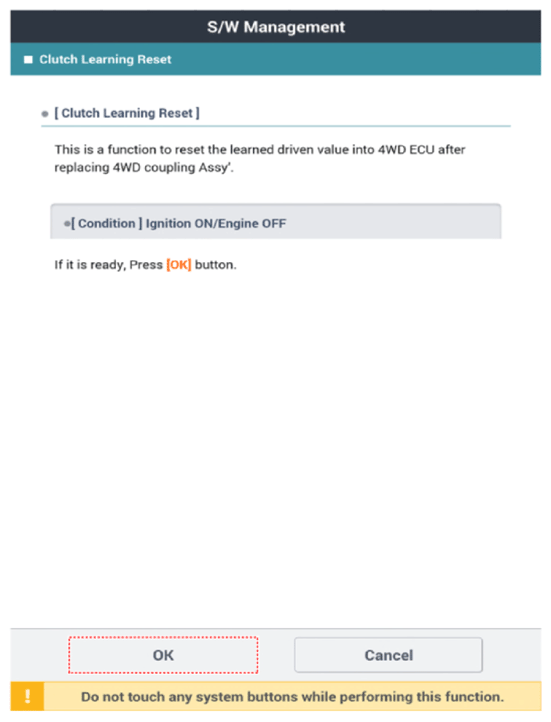

      G14424396Courtesy of HYUNDAI MOTOR AMERICA

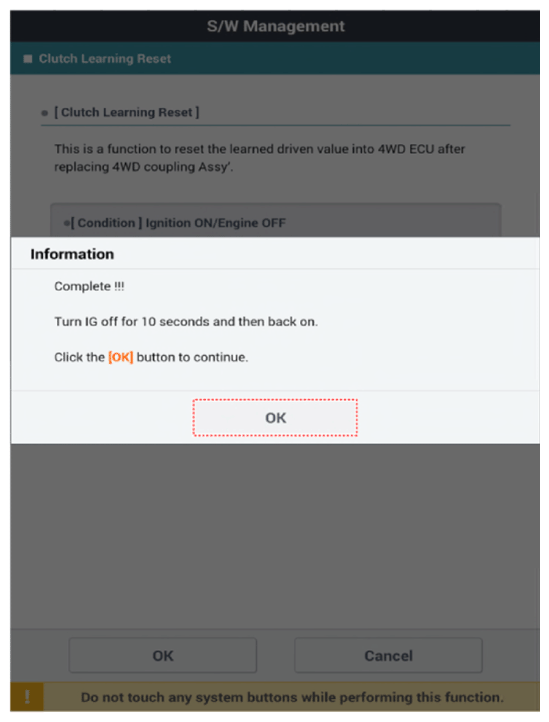

      G14424397Courtesy of HYUNDAI MOTOR AMERICA
    2. Replacement of AWD ECU (Controller) only

      Before replacement: Check the ECU's clutch learning.

G14424398Courtesy of HYUNDAI MOTOR AMERICA

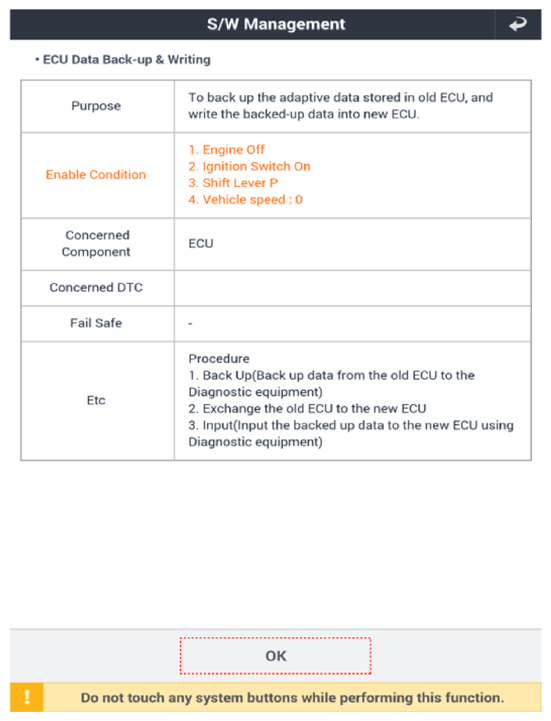

G14424399Courtesy of HYUNDAI MOTOR AMERICA

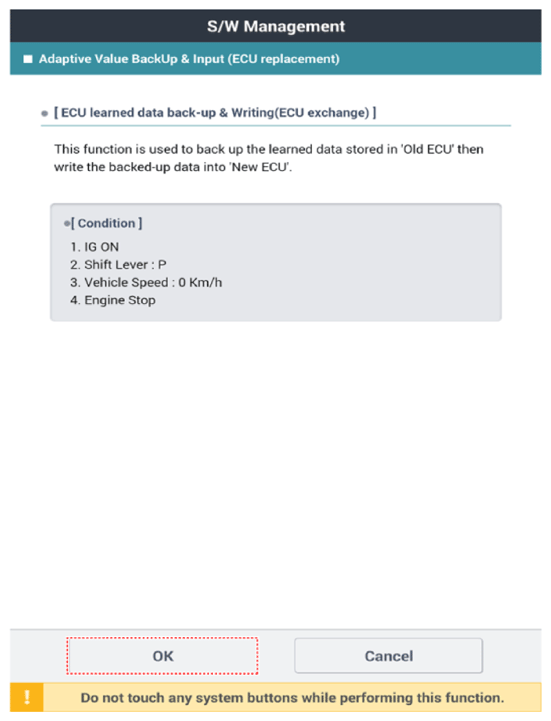

G14424400Courtesy of HYUNDAI MOTOR AMERICA
G14424401Courtesy of HYUNDAI MOTOR AMERICA

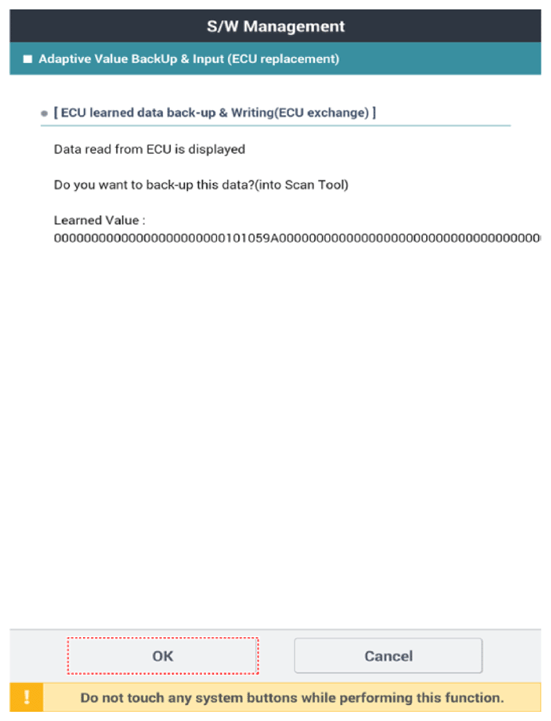

G14424402Courtesy of HYUNDAI MOTOR AMERICA

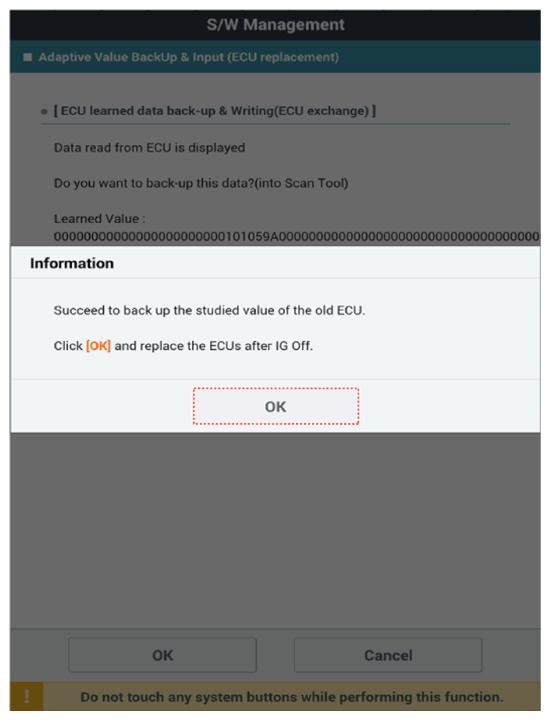

G14424403Courtesy of HYUNDAI MOTOR AMERICA

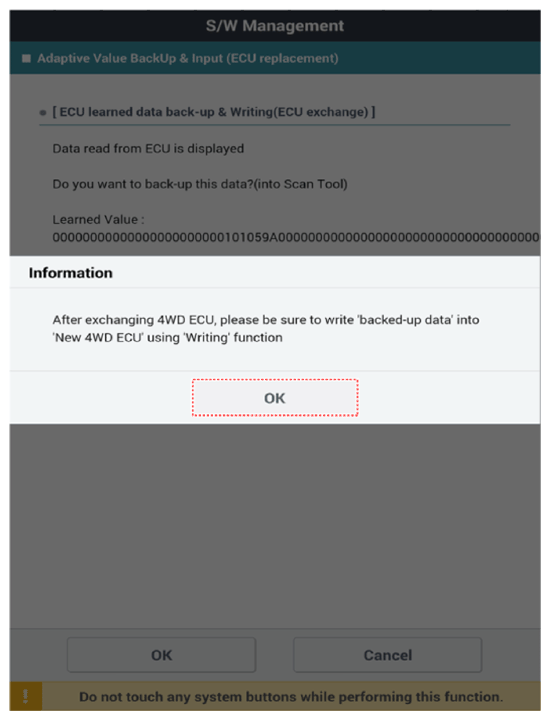

G14424404Courtesy of HYUNDAI MOTOR AMERICA

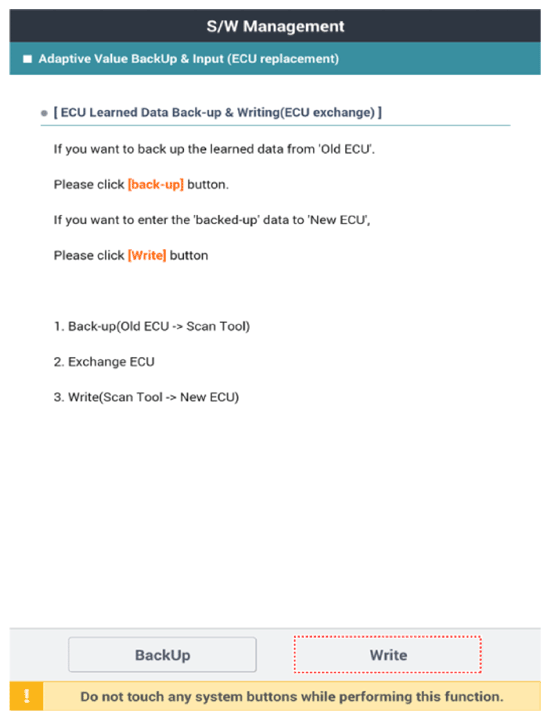

G14424405Courtesy of HYUNDAI MOTOR AMERICA

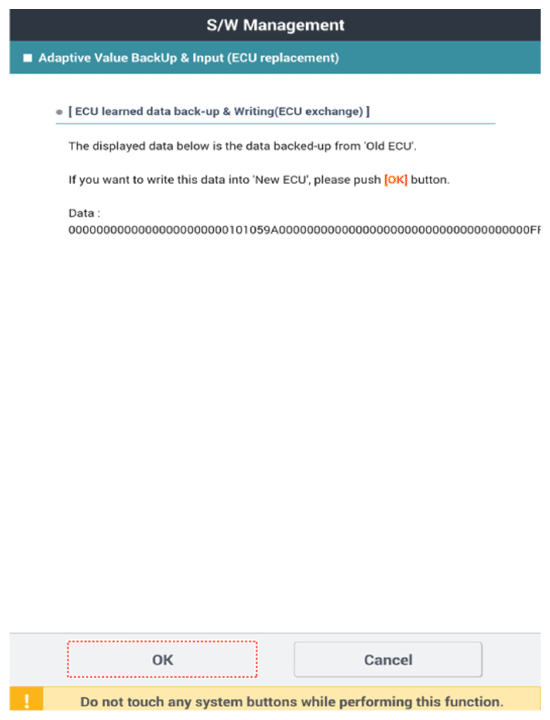

G14424406Courtesy of HYUNDAI MOTOR AMERICA

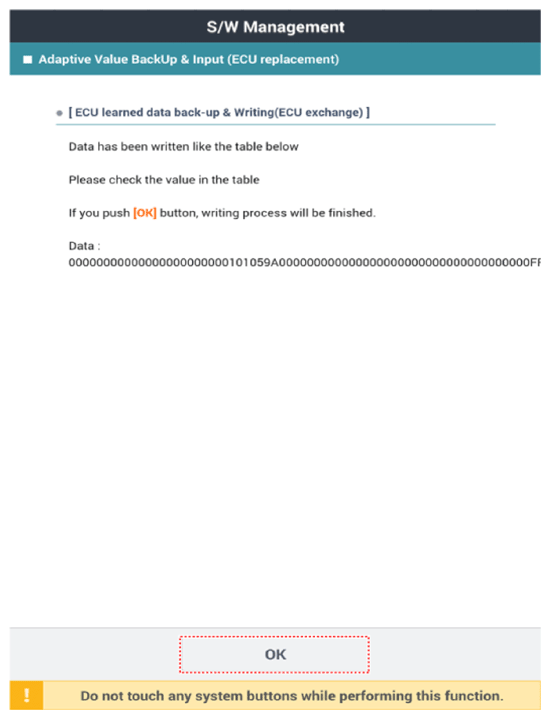

G14424407Courtesy of HYUNDAI MOTOR AMERICA
G14424408Courtesy of HYUNDAI MOTOR AMERICA

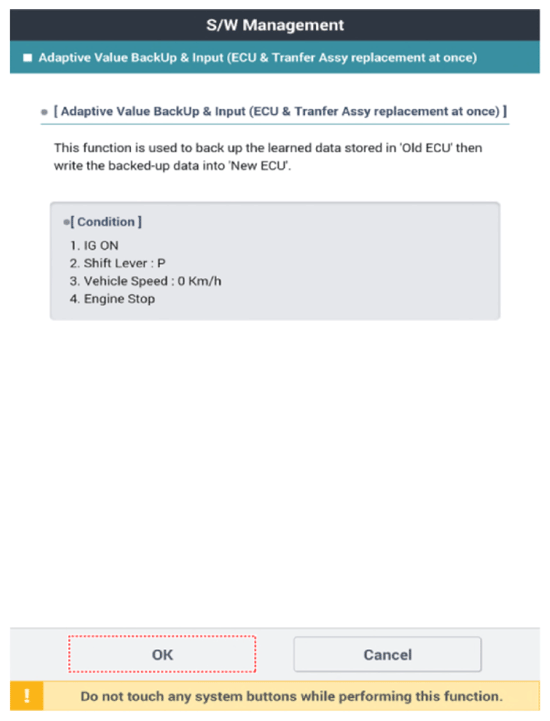

G14424409Courtesy of HYUNDAI MOTOR AMERICA

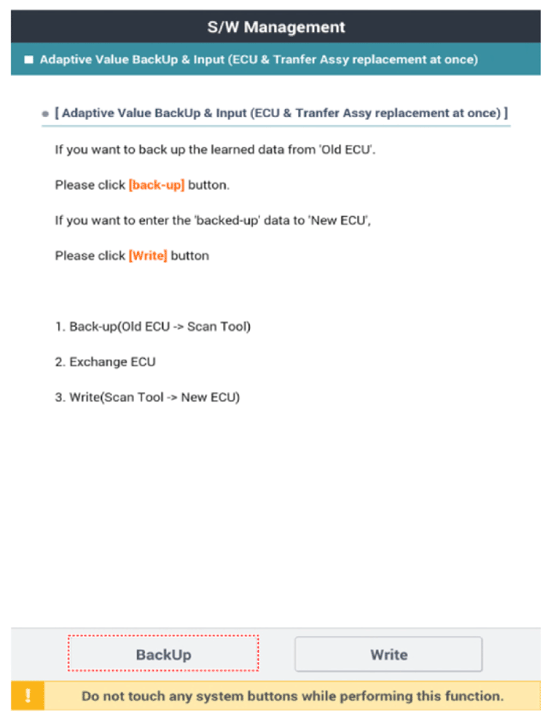

G14424410Courtesy of HYUNDAI MOTOR AMERICA

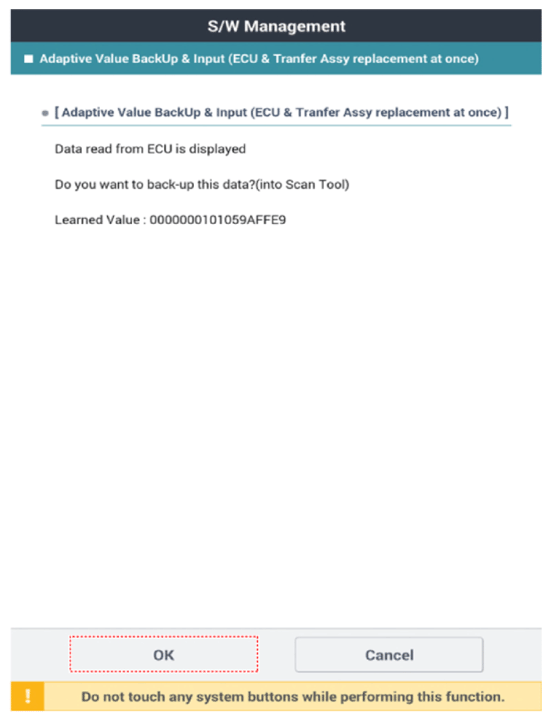

G14424411Courtesy of HYUNDAI MOTOR AMERICA

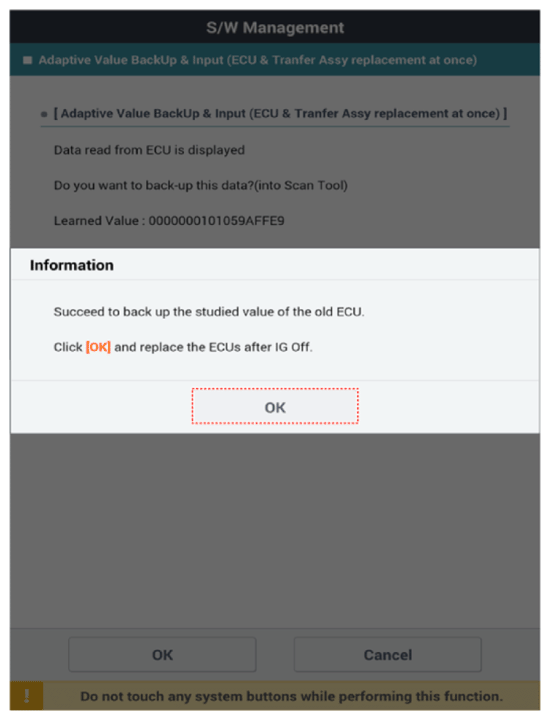

G14424412Courtesy of HYUNDAI MOTOR AMERICA

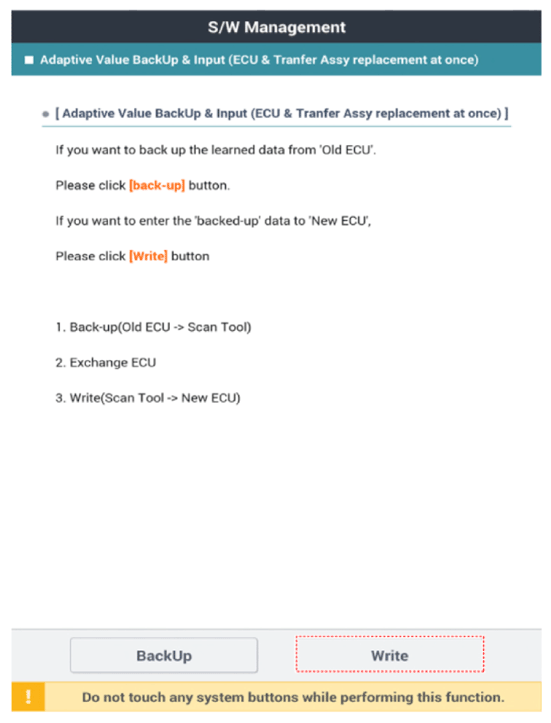

G14424413Courtesy of HYUNDAI MOTOR AMERICA

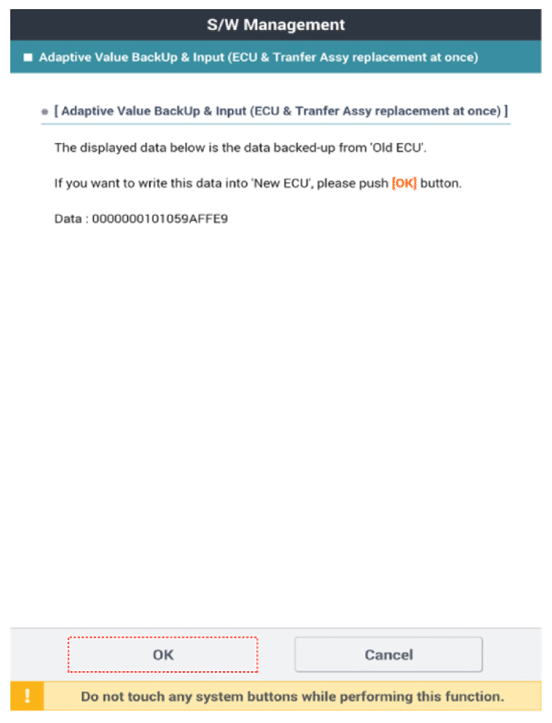

G14424414Courtesy of HYUNDAI MOTOR AMERICA

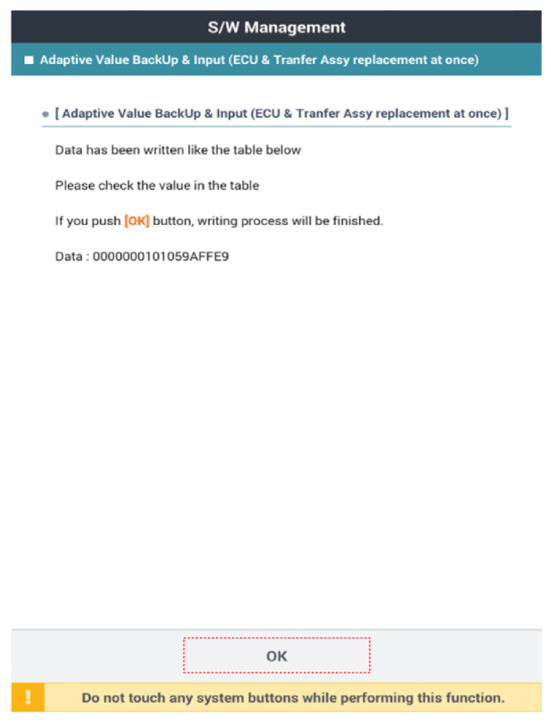

G14424415Courtesy of HYUNDAI MOTOR AMERICA
G14424416Courtesy of HYUNDAI MOTOR AMERICA

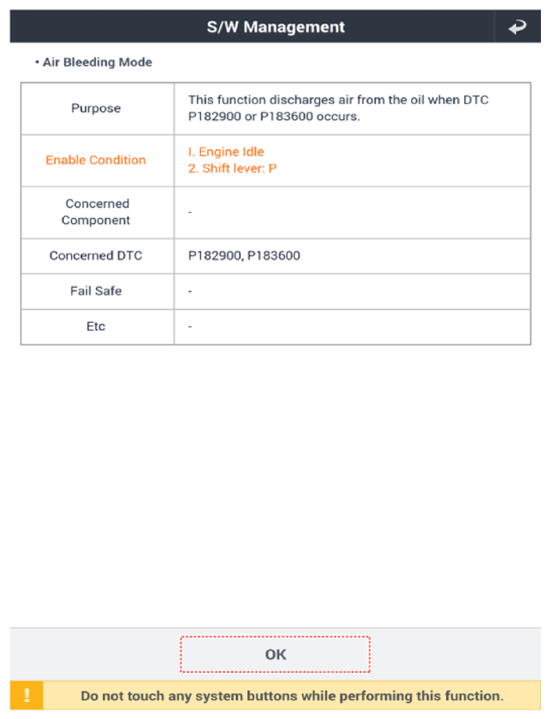

G14424417Courtesy of HYUNDAI MOTOR AMERICA

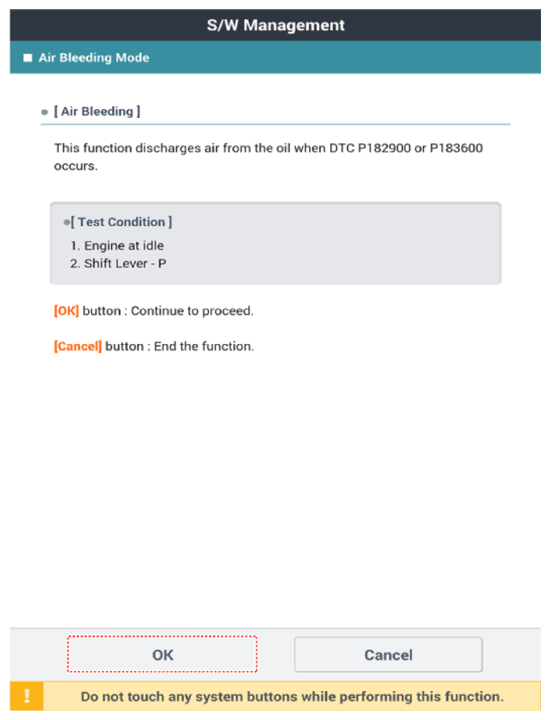

G14424418Courtesy of HYUNDAI MOTOR AMERICA
