Repair Procedures: Inspection

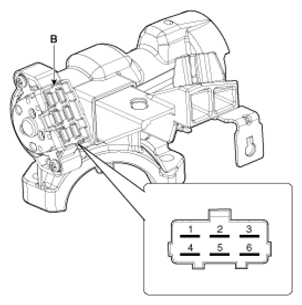

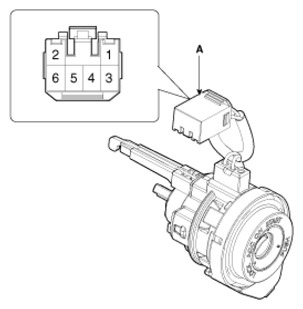

  1. Disconnect the ignition switch connector (B) and key warning switch connector (A) from under the steering column.
    G13038223Courtesy of HYUNDAI MOTOR AMERICA
    G13038224Courtesy of HYUNDAI MOTOR AMERICA

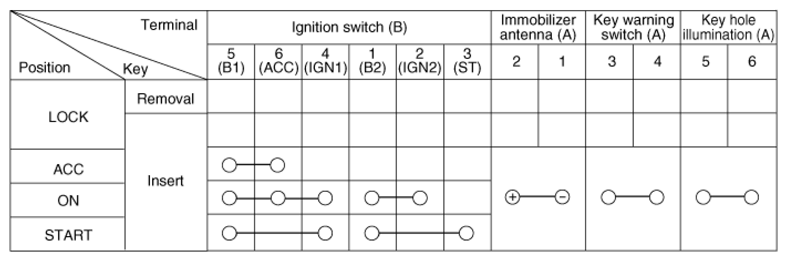

  2. Check for continuity between the terminals.
  3. If continuity is not specified, replace the switch.
    G13038225Courtesy of HYUNDAI MOTOR AMERICA
