Compensation Requirement and Procedure
- Simultaneous replacement of 4WD ECU (Controller) and coupling
- Does not require compensation.
- Replacement of coupling only

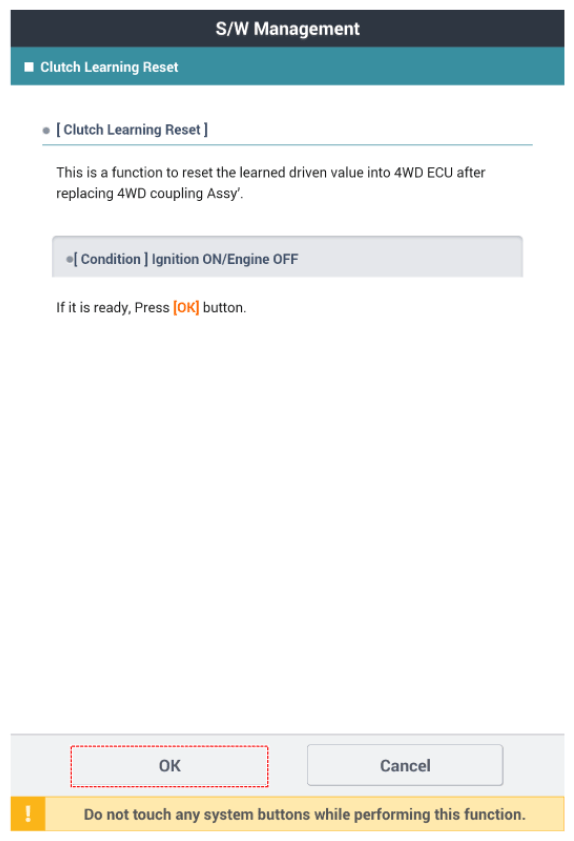

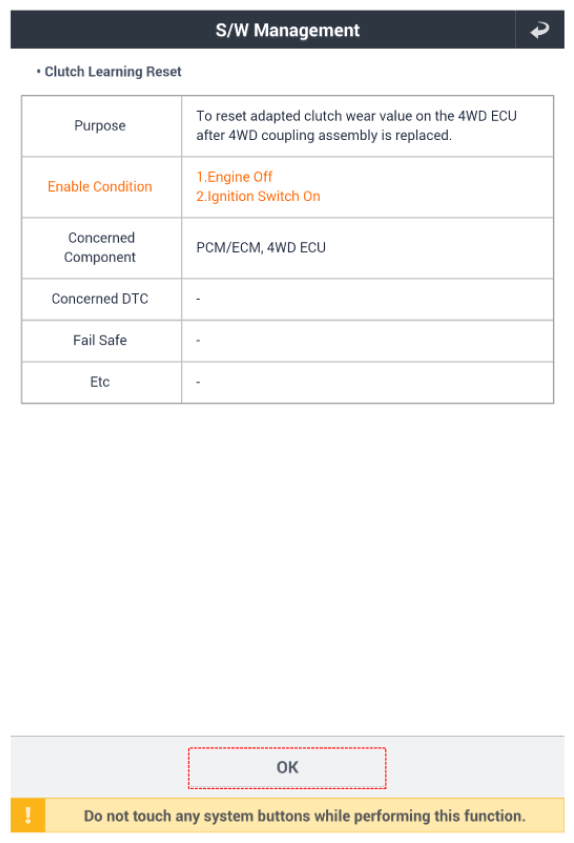

- Reset the 4WD ECU's (Controller) clutch learning.
- Replacement of 4WD ECU (Controller) only

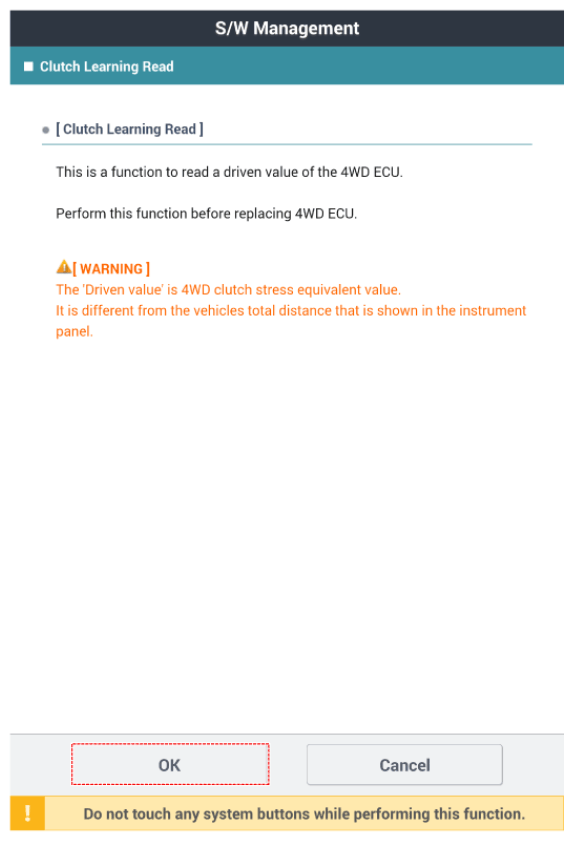

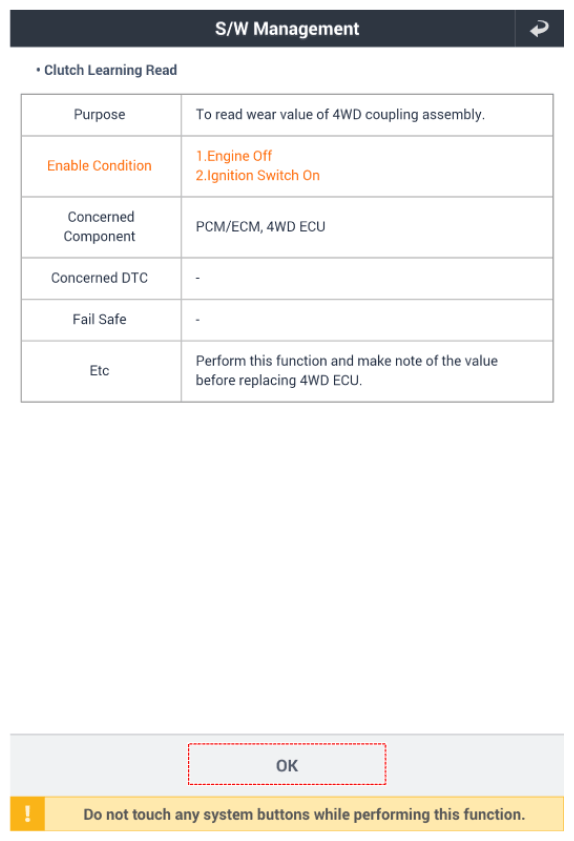

- Before replacement: Check the ECU's clutch learning.

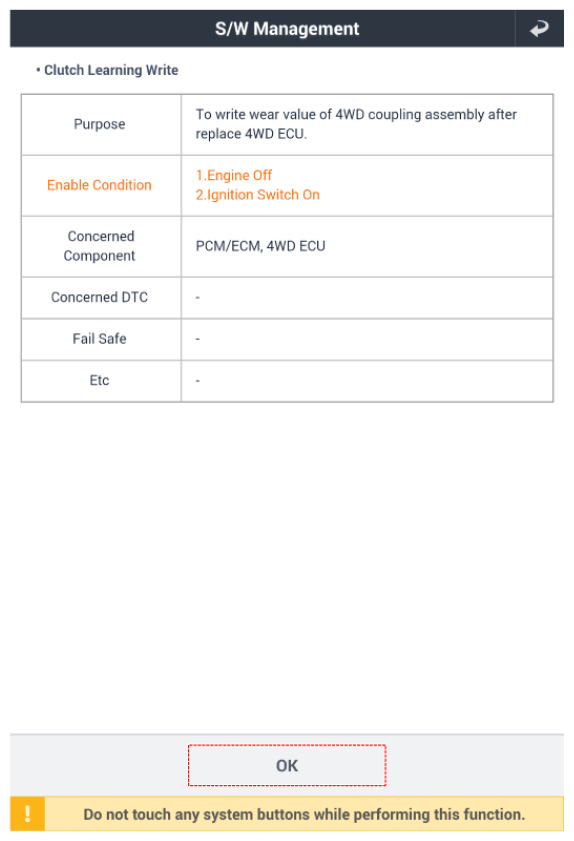

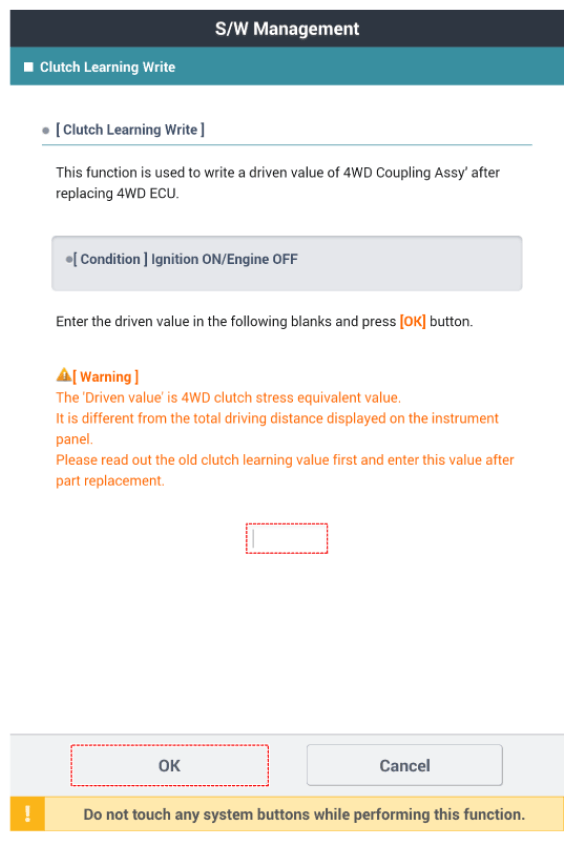

- After replacement: Enter the original ECU's clutch learning into the replacement ECU.
