Repair Procedures: Removal
- Turn the ignition switch OFF, and then remove battery (-) cable.
- Release the residual pressure in fuel line. (Refer to "RELEASE RESIDUAL PRESSURE IN FUEL LINE ")

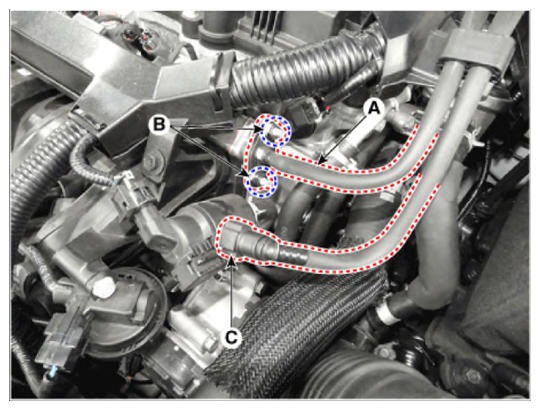

- Disconnect the fuel feed tube (A) after remove the nuts (B).
- Disconnect the vapor tube quick-connector (C) which is connected from the PCSV.
- Lift the vehicle.
- Remove the fuel tank. (Refer to "FUEL TANK ")

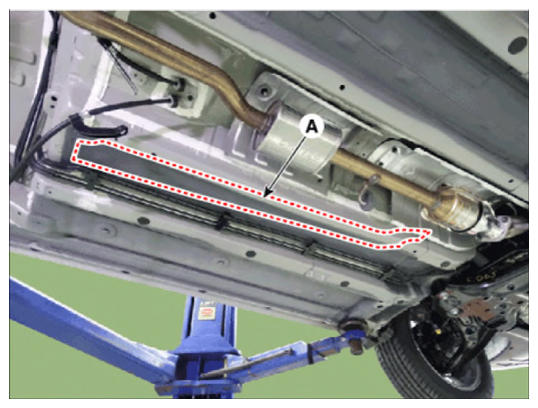

- Disconnect the fuel & brake line protect (A) from the fixing clip.

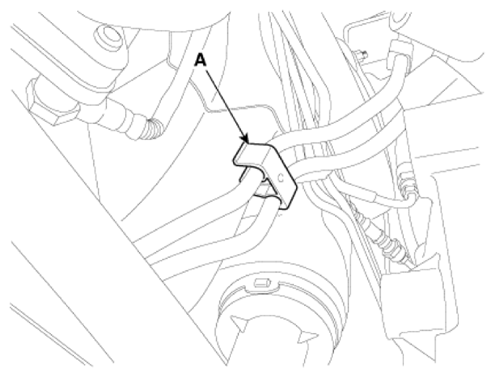

- Remove the fuel line fixing clip (A).

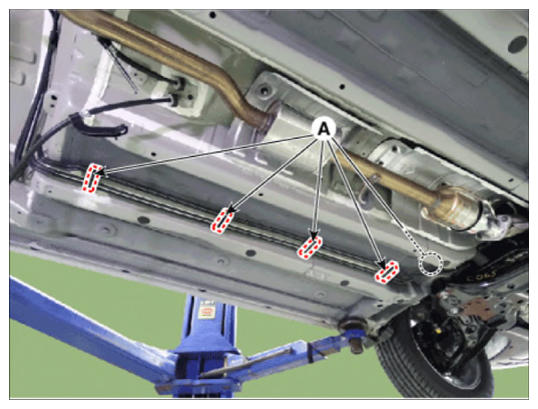

- Remove the fuel line fixing clip (A).

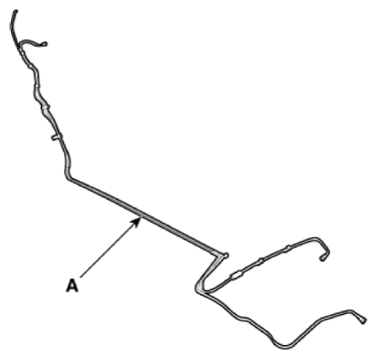

- Remove the fuel line (A).
