Repair Procedures: Replacement
WARNING: This page is about a different variant/trim than selected.
- Turn OFF ignition switch and disconnect the negative (-) battery cable.
- Remove the air cleaner assembly.
(Refer to Engine Mechanical System - "AIR CLEANER ")

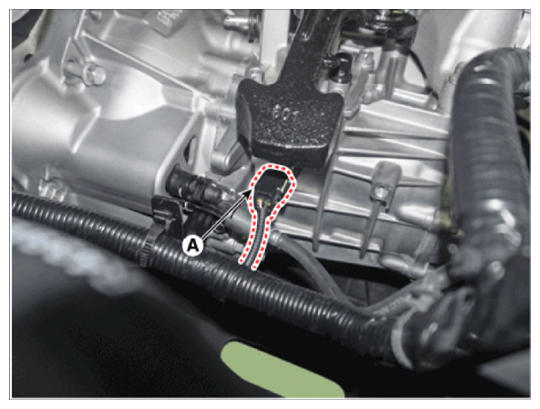

- Disconnect the neutral switch connector (A).

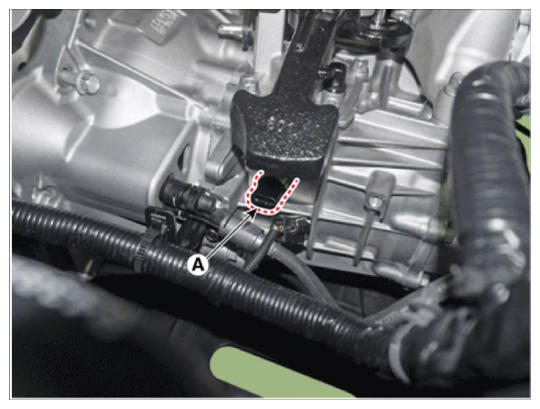

- Replace the neutral position switch (A).
Tightening torque:
39.2 - 58.8 N.m (4.0 - 6.0 kgf.m, 28.9 - 43.4 lb-ft)
