Components And Components Location: Components

Fig 1: Timing System Components Location With Torque Specifications (1 Of 2)
G14076263Courtesy of HYUNDAI MOTOR AMERICA

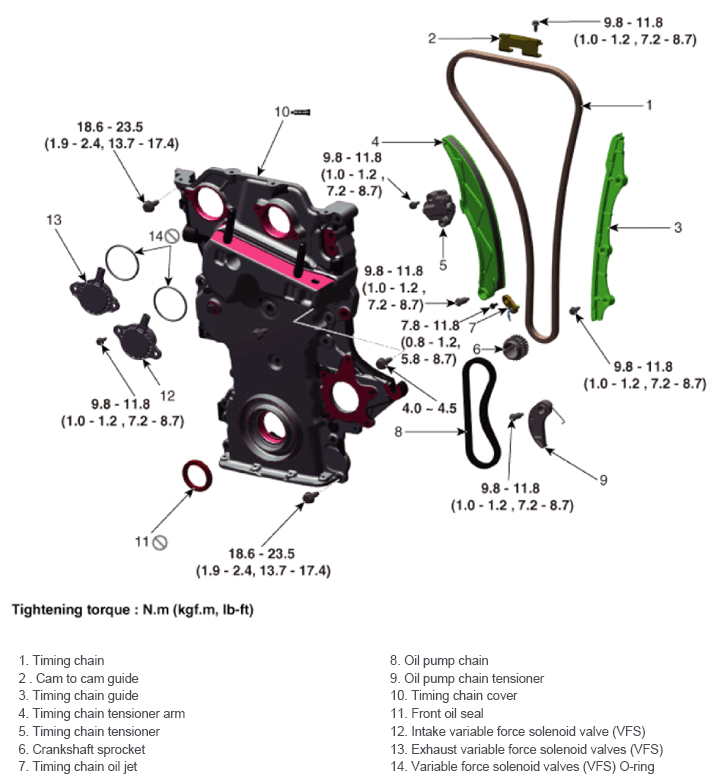

Fig 2: Timing System Components Location With Torque Specifications (2 Of 2)
G14076264Courtesy of HYUNDAI MOTOR AMERICA
