Repair Procedures: Removal

  1. Turn ignition switch OFF and disconnect the negative (-) battery cable.

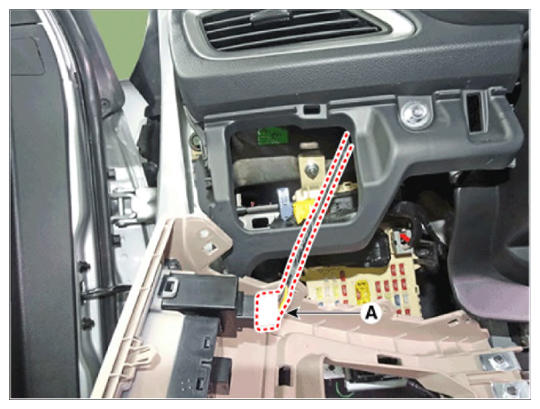

  2. Remove the crash pad lower panel.

    (Refer to Body - "CRASH PAD LOWER PANEL ")

    G14078060Courtesy of HYUNDAI MOTOR AMERICA
  3. Check the continuity between the switch terminals as the ESP OFF switch is engaged.
    G14078061Courtesy of HYUNDAI MOTOR AMERICA
    G14078062Courtesy of HYUNDAI MOTOR AMERICA
    No Connector
    1 IGS IGN (-)
    2 -
    3 GND
    4 -
    5 IGS
    6 -
    7 IGN1
    8 Tail
    9 -
    10 -
    11 ESP
    12 -
