Repair Procedures: Removal
- Turn ignition switch OFF and disconnect the positive (+) battery cable.

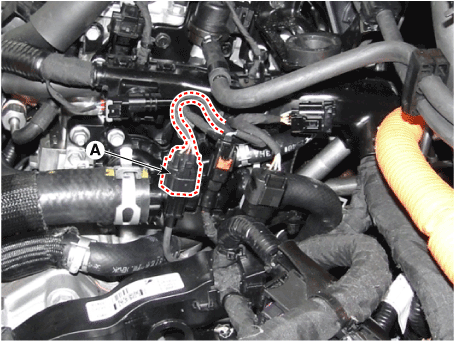

- Disconnect the crankshaft position sensor connector (A).
- Remove the engine room nuder cover.
(Refer to Engine Mechanical System - "ENGINE ROOM UNDER COVER ")

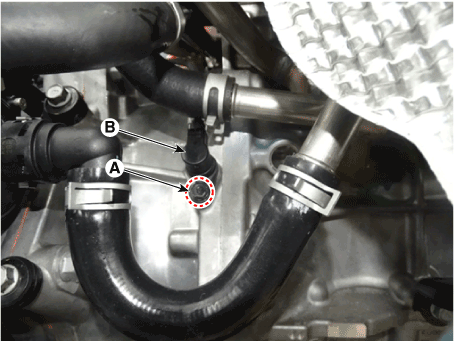

- Remove the crankshaft position sensor (B) after loosening the bolts (A).
Tightening torque:
9.8 - 11.7 N.m (1.0 - 1.2 kgf.m, 7.2 - 8.6 lb-ft)
