Repair Procedures: Removal
- Turn ignition switch OFF and disconnect the positive (+) battery cable.
- Remove the air cleaner assembly
(Refer to Engine Mechanical System - "AIR CLEANER ")

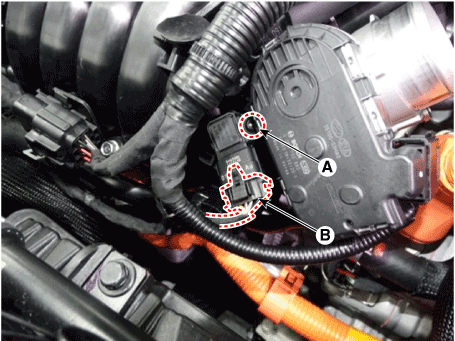

- Disconnect the manifold absolute pressure sensor connector (A).
- Remove the installation bolt (B), and then remove the sensor from the surge tank.
Tightening torque:
7.8 - 9.8 N.m (0.8 - 1.0 kgf.m, 5.8 - 7.2 lb-ft)
