Repair Procedures: Installation
- Check that the gear is shifted to "N".

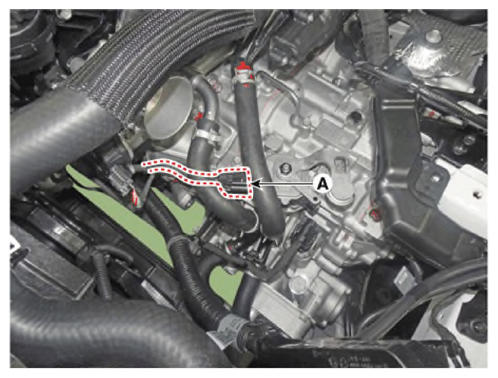

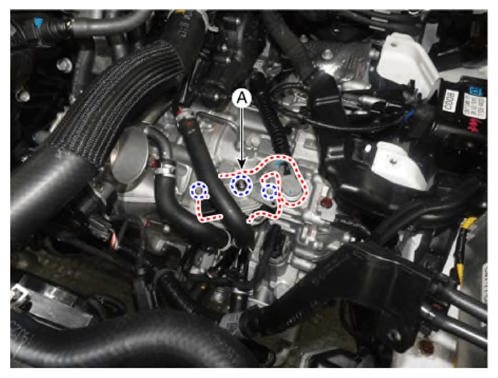

- Lightly tighten the bolts after installing the position switch (A).NOTE:
- Lightly tighten the bolts so that adjustment.

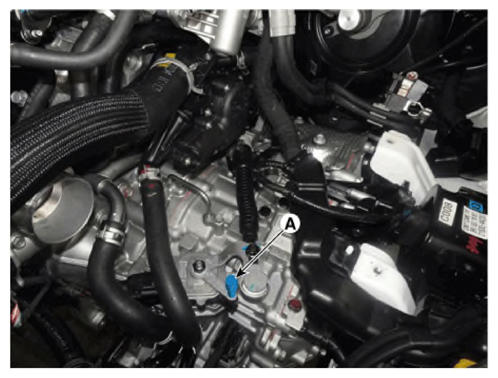

- Install the position switch guide pin (A) SST No.: (09480-A3800).

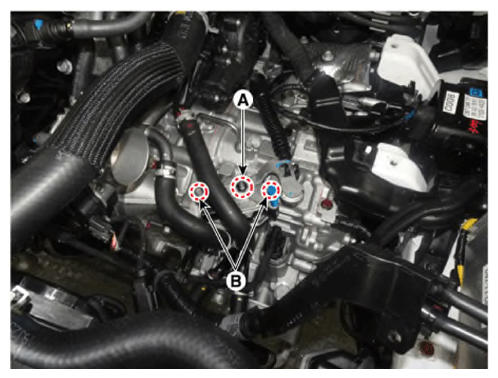

- Tighten the manual control lever nut (A) and the position switch mounting bolts (B) with specified toque.
Tightening torque:
- 17.7 - 24.5 N.m (1.8 - 2.5 kgf.m, 13.0 - 18.1 lb-ft)
- 9.8 - 11.8 N.m (1.0 - 1.2 kgf.m, 7.2 - 8.7 lb-ft)

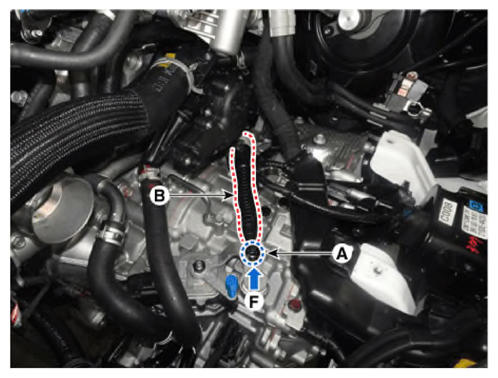

- After pushing the "F" direction to remove the clearance, install the shift cable (B) and tighten the nut (A) to the specified torque.
Tightening torque:
9.8 - 13.7 N.m (1.0 - 1.4 kgf.m, 6.5 - 10.1 lb-ft)
- Remove the position switch guide pin SST No.: (09480-A3800) (A).

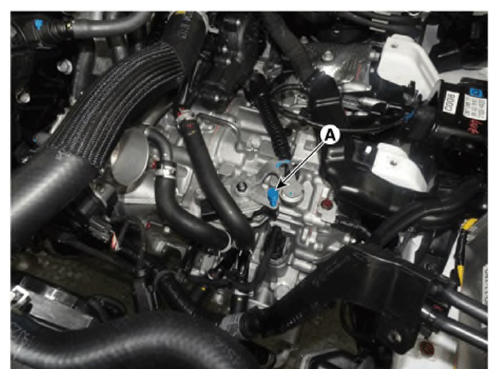

- Connect the position switch connector (A).
- Install the battery and battery tray.
(Refer to Engine Electrical System - "BATTERY ")
- Install the air cleaner assembly and air duct.
(Refer to Engine Mechanical System - "AIR CLEANER ")
