Repair Procedures: Installation

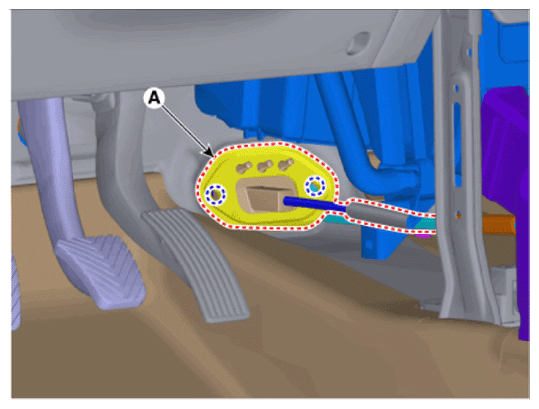

  1. Install the shift cable retainer (A) and then tightening the nuts.

    Tightening torque:

    11.8 - 14.7 N.m (1.2 - 1.5 kgf.m, 8.7 - 10.8 lb-ft)

    G14607830Courtesy of HYUNDAI MOTOR AMERICA

    Information

    • Install the cable after placing the shift lever and the manual control lever in the N position.

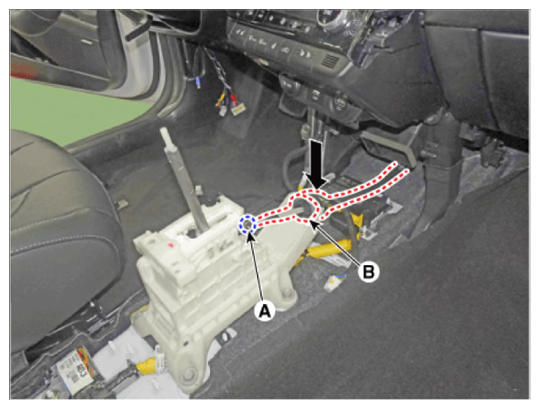

  2. Install the shift cable socket (B) and snap pin (A).
    G14607831Courtesy of HYUNDAI MOTOR AMERICA

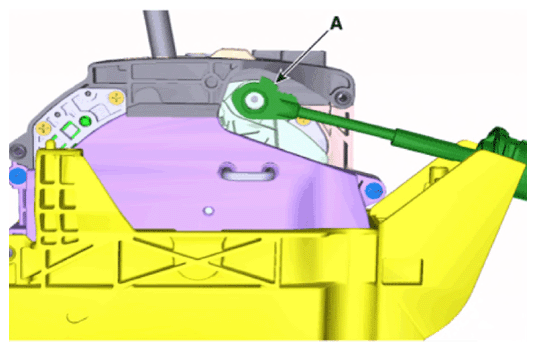

    CAUTION:
    • Lug (A) must assemble upward.
      G14607832Courtesy of HYUNDAI MOTOR AMERICA

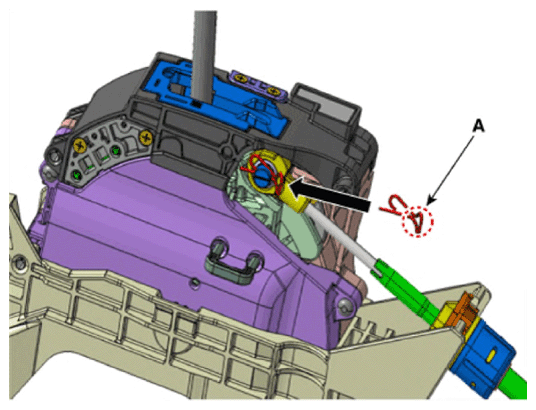

    • When assembling the snap pin, be careful about the correct direction.
      • The band portion (A) must point to the front of the vehicle.
      • The band portion (A) must point outwards.
        G14607833Courtesy of HYUNDAI MOTOR AMERICA
  3. Install the floor console assembly.

    (Refer to Body - "FLOOR CONSOLE ")

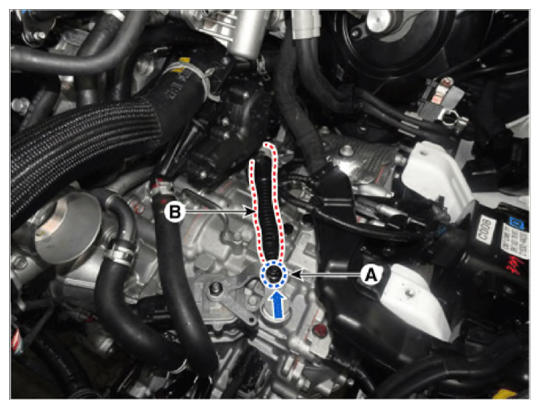

  4. Push the shift cable (B) slightly in the direction of the arrow to remove the clearance, and then tighten the nut (A) to the specified torque.

    Tightening torque:

    9.8 - 13.7 N.m (1.0 - 1.4 kgf.m, 6.5 - 10.1 lb-ft)

    G14607834Courtesy of HYUNDAI MOTOR AMERICA
    CAUTION:
    • Replace the cable clip, use a new one.
    G14607835Courtesy of HYUNDAI MOTOR AMERICA
  5. Install the battery and battery tray.

    (Refer to Body Electrical System - "BATTERY ")

  6. Install the air cleaner assembly and air duct.

    (Refer to Engine Mechanical System - "AIR CLEANER ")

    CAUTION:
    • Check that operating surely at each range of the inhibitor switch corresponding to each position of shift lever.
