Components And Components Location: Components

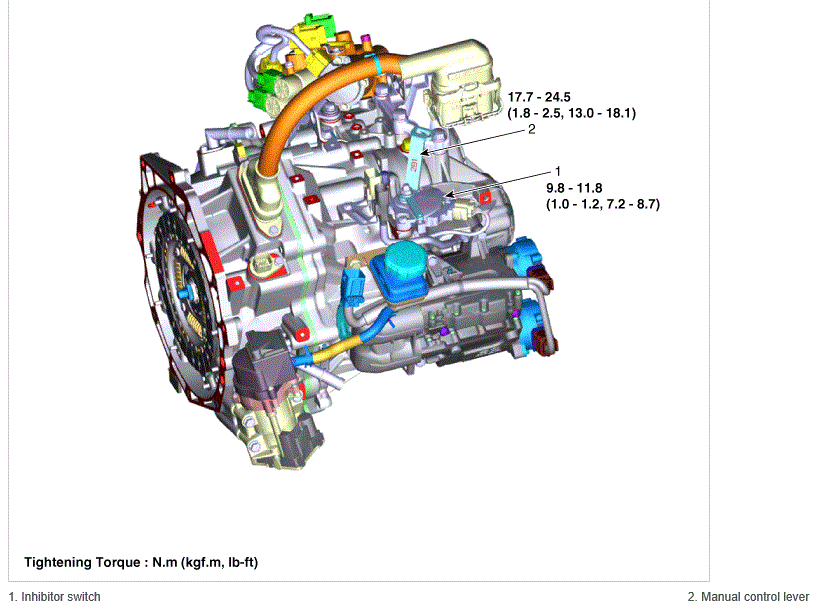

Fig 1: Inhibitor Switch Components Location With Torque Specification
G13563363Courtesy of HYUNDAI MOTOR AMERICA
