Connector Assembly Status Test

  1. Remove the connector (A) and reinstall it.
    G13562731Courtesy of HYUNDAI MOTOR AMERICA

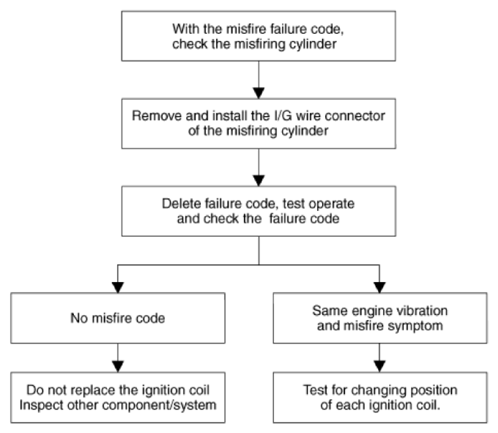

    G13562732Courtesy of HYUNDAI MOTOR AMERICA
