Gasoline 3.8L

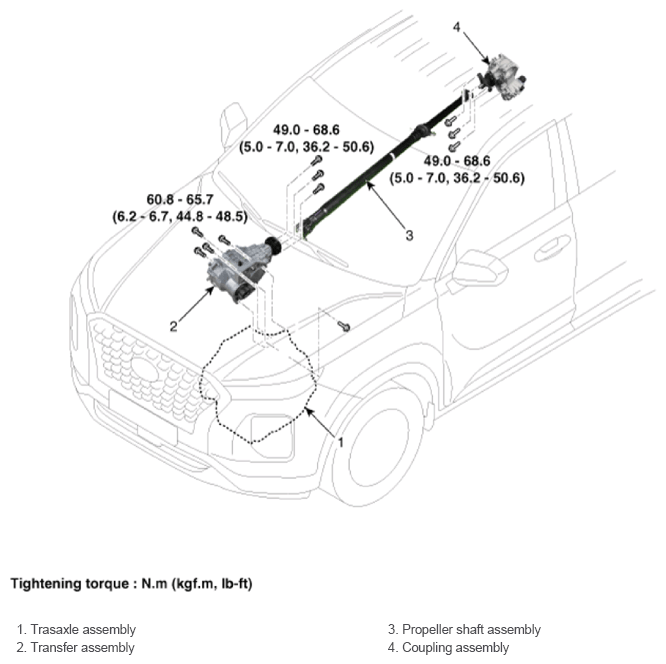

Fig 1: Front Wheel Transfer Assembly Components Location With Torque Specifications (Gasoline 3.8L)
G14424381Courtesy of HYUNDAI MOTOR AMERICA
