Palisade Calligraphy, FWD
>>
Repair and Diagnosis
>>
Accessories & Equipment
>>
Cruise Control Systems
>>
Cruise Control System
>>
Schematic Diagrams
>>

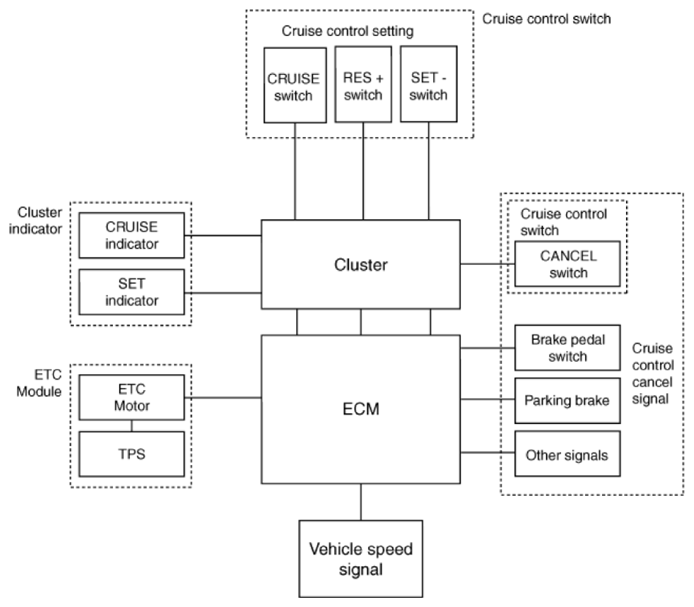

System Block Diagram
>>
Notes
April 5, 2026:
LEMON Manuals is launched!
Read the announcement.
System Block Diagram: Notes
Courtesy of HYUNDAI MOTOR AMERICA
Courtesy of HYUNDAI MOTOR AMERICA
