Repair Procedures: Removal

  1. Disconnect the negative (-) battery terminal.
  2. Remove the tailgate trim.

    (Refer to Body - "TAILGATE TRIM ")

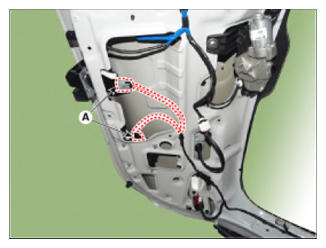

  3. Disconnect the power tailgate latch and PCU connector (A).
    G14427566Courtesy of HYUNDAI MOTOR AMERICA

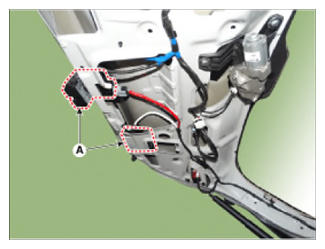

  4. Remove the power tailgate latch and PCU (A) assembly after loosening mounting nuts & bolts.
    G14427567Courtesy of HYUNDAI MOTOR AMERICA
