Hood Switch Inspection

  1. Remove the front bumper assembly.

    (Refer to Body - "FRONT BUMPER ASSEMBLY ")

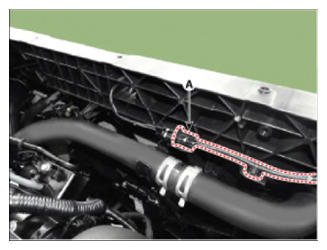

  2. Disconnect the hood switch connector (A).
    G14424025Courtesy of HYUNDAI MOTOR AMERICA
  3. Check for continuity between the terminals and ground as shown in illustration below.

    (Refer to Body - "HOOD LATCH ")

    G14424026Courtesy of HYUNDAI MOTOR AMERICA
