Repair Procedures: Removal
- Turn the ignition switch OFF and disconnect the battery negative (-) cable.
- Lift the vehicle.
- Remove the rear-LH wheel, tire, and the inner wheel house.

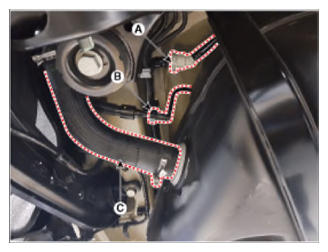

- Disconnect the fuel filler hose (B) and leveling hose quick connector (A).
- Disconnect the ventilation hose quick connector (B).

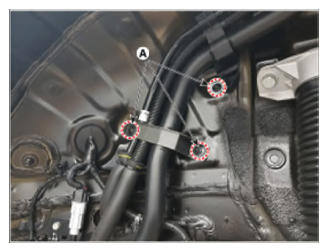

- Remove the filler-neck assembly from the vehicle after removing the bracket mounting nuts (A).
