Monitor Current Data

  1. Ignition "OFF"
  2. Connect GDS to Data Link Connector (DLC).
  3. Ignition "ON"
  4. Monitor cruise control related parameter in "Current Data" with GDS.

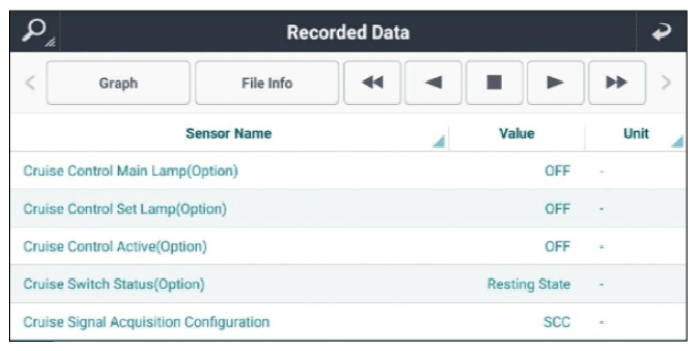

    Specification:  Refer to illustration below

G14460779Courtesy of HYUNDAI MOTOR AMERICA
