Monitor Current Data

  1. Ignition "OFF"
  2. Connect GDS to Data Link Connector (DLC).
  3. Ignition "ON" & Engine "ON"
  4. Monitor following parameters in "Current Data" with GDS.

    Specification:  Refer to illustrations shown below

    G14460972Courtesy of HYUNDAI MOTOR AMERICA

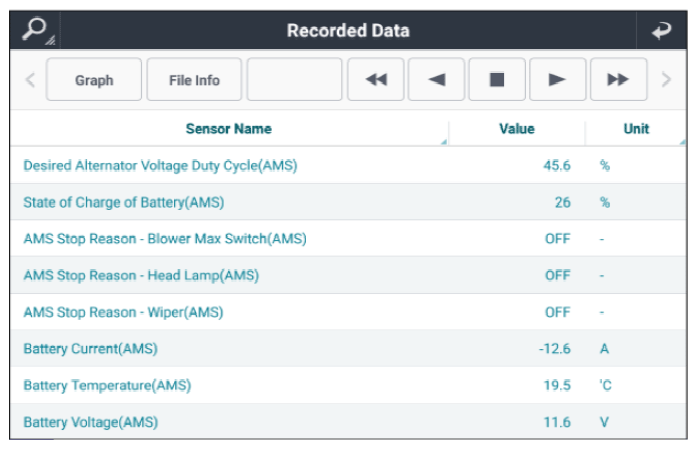

    Fig.1) Alternator Duty current data at idle and no electrical load

    G14460973Courtesy of HYUNDAI MOTOR AMERICA

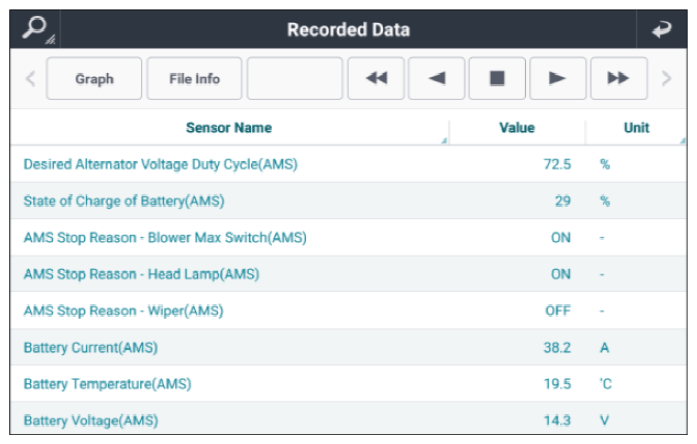

    Fig.2) Alternator Duty current data at idle and electrical load
