Engine Control System Diagnosis (9 Of 9)
>>
DTC U04B1-00: Invalid Data Received From Battery Monitor Module
>>
Troubleshooting
>>
Diagnostic Flowchart
April 5, 2026:
LEMON Manuals is launched!
Read the announcement.

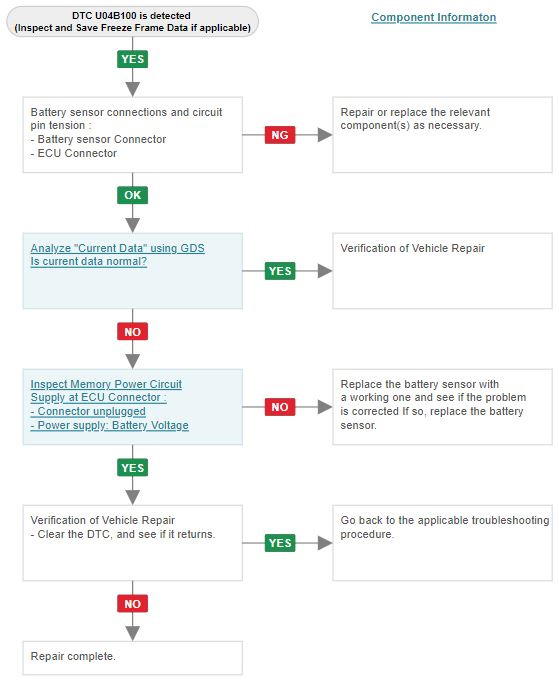

Diagnostic Flowchart
Courtesy of HYUNDAI MOTOR AMERICA
Courtesy of HYUNDAI MOTOR AMERICA
