Repair Procedures: Installation

WARNING: This page is about a different car, the 2023 Hyundai Palisade. However, it is still accessible from the selected car via links, so may be relevant.

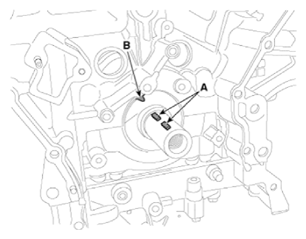

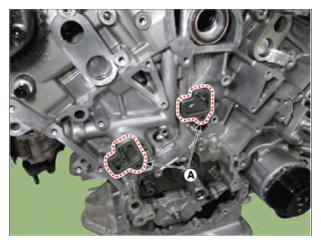

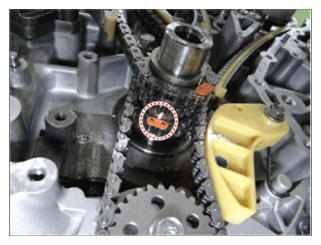

The key (A) of crankshaft should be aligned with the timing mark (B) of block. As a result of this, the piston of No. 1 cylinder is placed at the top dead center on compression stroke.

Courtesy of HYUNDAI MOTOR AMERICA
Install the tensioner adapter assembly (A).

Courtesy of HYUNDAI MOTOR AMERICA

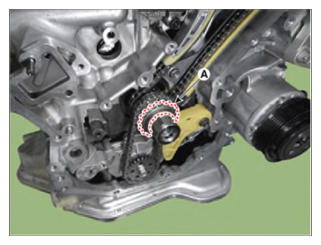

Install the crankshaft chain sprocket (A). (LH camshaft drive).

Courtesy of HYUNDAI MOTOR AMERICA

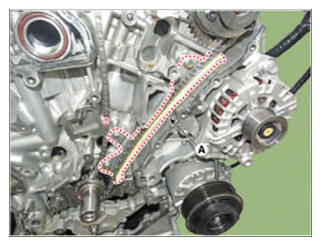

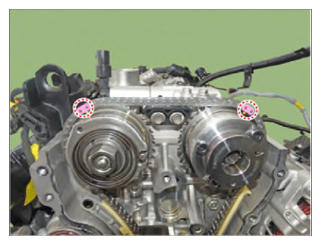

Install the LH timing chain (A).

Courtesy of HYUNDAI MOTOR AMERICA

Courtesy of HYUNDAI MOTOR AMERICA

Courtesy of HYUNDAI MOTOR AMERICA
NOTE:
- To install the timing chain with no slack between each shaft (cam, crank), follow the procedure below: Crankshaft sprocket → Exhaust camshaft sprocket → Intake camshaft sprocket.

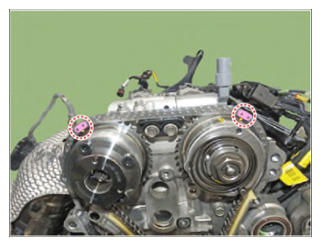

- When installing the timing chain, be sure that the timing mark of each sprocket is matched with the timing mark (color link) of the timing chain.

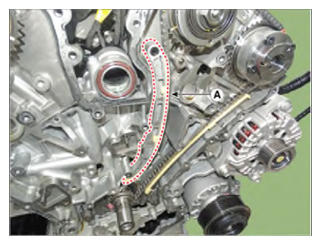

Install the LH timing chain guide (A).
Tightening torque:

19.6 - 24.5 N.m (2.0 - 2.5 kgf.m, 14.5 - 18.1 lb.ft)

Courtesy of HYUNDAI MOTOR AMERICA

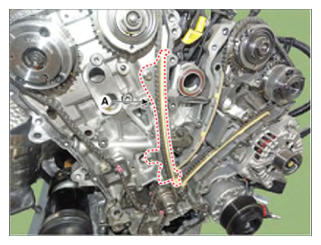

Install the LH timing chain tensioner arm (A).
Tightening torque

18.6 - 21.6 N.m (1.9 - 2.2 kgf.m, 13.7 - 15.9 lb.ft)

Courtesy of HYUNDAI MOTOR AMERICA

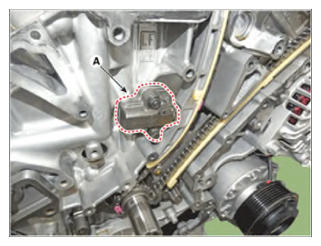

Install the LH timing chain auto tensioner (A).
Tightening torque

9.8 - 11.8 N.m (1.0 - 1.2 kgf.m, 7.2 - 8.7 lb.ft)

Courtesy of HYUNDAI MOTOR AMERICA
Install the LH timing chain cam to cam guide (A).
Tightening torque:

9.8 - 11.8 N.m (1.0 - 1.2 kgf.m, 7.2 - 8.7 lb.ft)

Courtesy of HYUNDAI MOTOR AMERICA

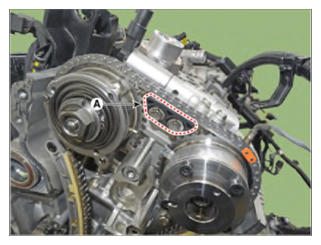

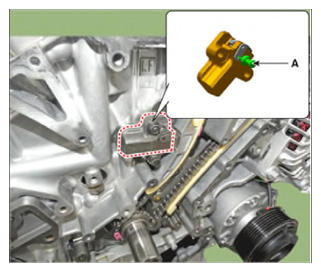

Pull out the pins (A) of LH timing chain auto tensioner.

Courtesy of HYUNDAI MOTOR AMERICA

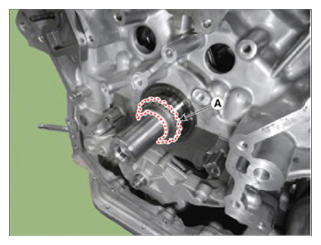

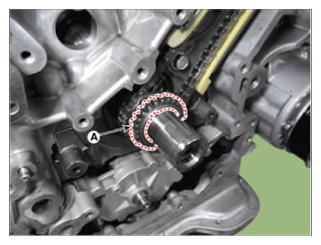

Install the crankshaft sprocket (A) (Oil pump drive).

Courtesy of HYUNDAI MOTOR AMERICA

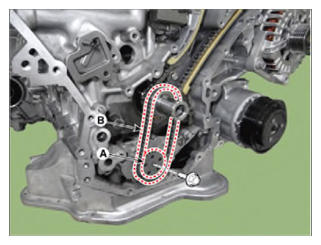

Install the oil pump chain sprocket (A) and oil pump chain (B).
Tightening torque:

19.6 - 24.5 N.m (2.0 - 2.5 kgf.m, 14.5 - 18.1 lb-ft)

Courtesy of HYUNDAI MOTOR AMERICA

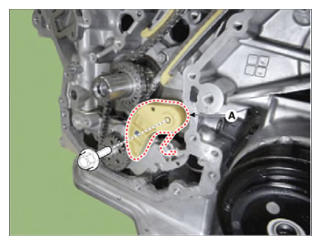

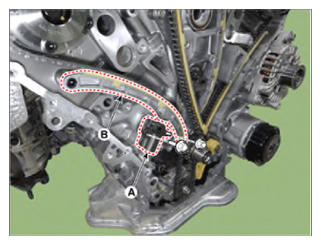

Install the oil pump chain tensioner assembly (A).
Tightening torque:

9.8 - 11.8 N.m (1.0 - 1.2 kgf.m, 7.2 - 8.7 lb.ft)

Courtesy of HYUNDAI MOTOR AMERICA
Install the camshaft chain sprocket (A). (RH camshaft drive)

Courtesy of HYUNDAI MOTOR AMERICA

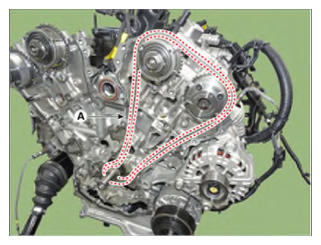

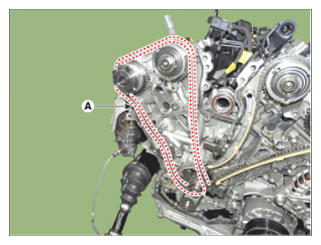

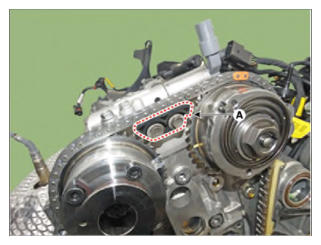

Install the RH timing chain (A).

Courtesy of HYUNDAI MOTOR AMERICA

Courtesy of HYUNDAI MOTOR AMERICA

Courtesy of HYUNDAI MOTOR AMERICA
NOTE:
- To install the timing chain with no slack between each shaft (cam, crank), follow the procedure below: Crankshaft sprocket → Intake camshaft sprocket → Exhaust camshaft sprocket.
- When installing the timing chain, be sure that the timing mark of each sprocket is matched with the timing mark (color link) of the timing chain.

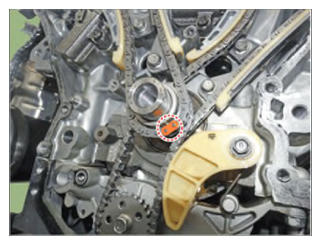

Install the RH timing chain guide (A).
Tightening torque

19.6 - 24.5 N.m (2.0 - 2.5 kgf.m, 14.5 - 18.1 lb.ft)

Courtesy of HYUNDAI MOTOR AMERICA
Install the RH timing chain auto tensioner (A) and the RH timing chain tensioner arm (B).
Tightening torque

A: 9.8 - 11.8 N.m (1.0 - 1.2 kgf.m, 7.2 - 8.7 lb.ft)

B: 18.6 - 21.6 N.m (1.9 - 2.2 kgf.m, 13.7 - 15.9 lb.ft)

Courtesy of HYUNDAI MOTOR AMERICA
Install the RH timing chain cam to cam guide (A).
Tightening torque:

9.8 - 11.8 N.m (1.0 - 1.2 kgf.m, 7.2 - 8.7 lb.ft)

Courtesy of HYUNDAI MOTOR AMERICA

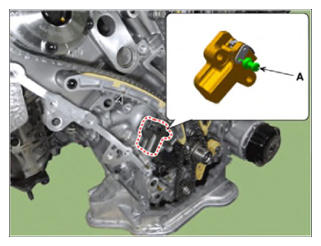

Pull out the pins (A) of RH timing chain auto tensioner.

Courtesy of HYUNDAI MOTOR AMERICA
After rotating the crankshaft 2 revolutions in regular direction (clockwise viewed from front), confirm the timing mark.
NOTE:
- Always turn the crankshaft clockwise.
- Turning the crankshaft counterclockwise before building up oil pressure in the hydraulic timing chain tensioner may result in the chain disengagement from the sprocket teeth.
Install the timing chain cover.
(Refer to Timing System - "TIMING CHAIN COVER ")
Install the remaining parts in the reverse order of removal.
NOTE:
- Refill engine oil.
- Refill radiator and reservoir tank with engine coolant.
- Clean the battery posts and cable terminals with sandpaper. Assemble and then apply grease to prevent corrosion.
- Inspect for fuel leakage.
  - After assembling the fuel line, turn on the ignition switch (without operating the starter) so that the fuel pump runs for approximately two seconds and fuel line pressurizes.
  - Repeat this operation two to three times, and then check for fuel leakage at any point on the fuel lines.
