Repair Procedures: Installation

WARNING: This page is about a different car, the 2023 Hyundai Palisade. However, it is still accessible from the selected car via links, so may be relevant.
  1. To install, reverse the removal procedure.
    NOTE:
    • Check the cleanliness of the pressure sensor before installation.
    • Check the pressure sensor O-ring (A).
      G15477647Courtesy of HYUNDAI MOTOR AMERICA

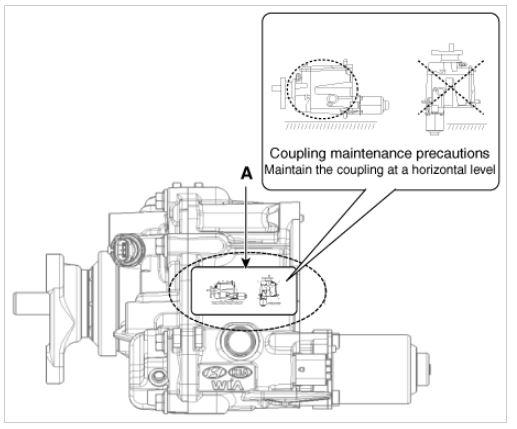

    • Keep it level with the sticker (A) on the top of the coupling.
      G15477648Courtesy of HYUNDAI MOTOR AMERICA
