Component Function: Function
WARNING: This page is about a different car, the 2023 Hyundai Palisade. However, it is still accessible from the selected car via links, so may be relevant.

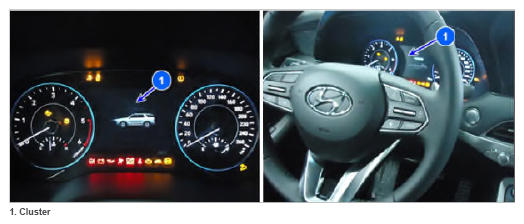

The cluster module controls a variety of functions installed on a control panel including MIL, trip computer, cluster text warning display, USM*, and sounds by receiving information through CAN communication lines. It also functions the variant coding, which synchronizes the cluster settings with the vehicle's system specifications transmitted by GDS.
DTCs will set when the vehicle information from CAN BUS and that from EOL* do not correspond. On the assembly line, EOL communication will terminate if any DTC is not detected through DTC search. At the service field, the cluster setting must be completed through variant coding using GDS in order to synchronize the vehicle information on GDS with that on the cluster.
| Component | Name_ETM | Description | ETM |
|---|---|---|---|
| Cluster* | "INSTRUMENT CLUSTER" | Instrument Cluster | SD200-2 |
| ABS ESC EPB |
"ESC CONTROL MODULE" | → Anti-lock Braking System → Electronic Stability Control → Electronic Parking Brake |
|
| LKAS | "LANE KEEPING ASSIST UNIT (LINE)" | Lane Keeping Assist System | |
| MDPS | "MDPS UNIT" | Motor Driven Power Steering | |
| SCC | "SMART CRUISE CONTROL RADAR" | Smart Cruise Control | |
| SRSCM | "SRS CONTROL MODULE" | Supplemental Restraints System Control Module | |
| 4WD | "4WD ECM" | 4 Wheel Drive | SD200-4 |
| IBU BCM TPMS SMK |
"IBU" | → [BCM+TPMS+SMK] Integrated Body Control Unit → Body Control Module → Tire Pressure Monitoring System → SMart Key control module |
|
| USM* | User Setting Mode, "User Settings" in the cluster | ||
| EOL* | End of Line | ||
