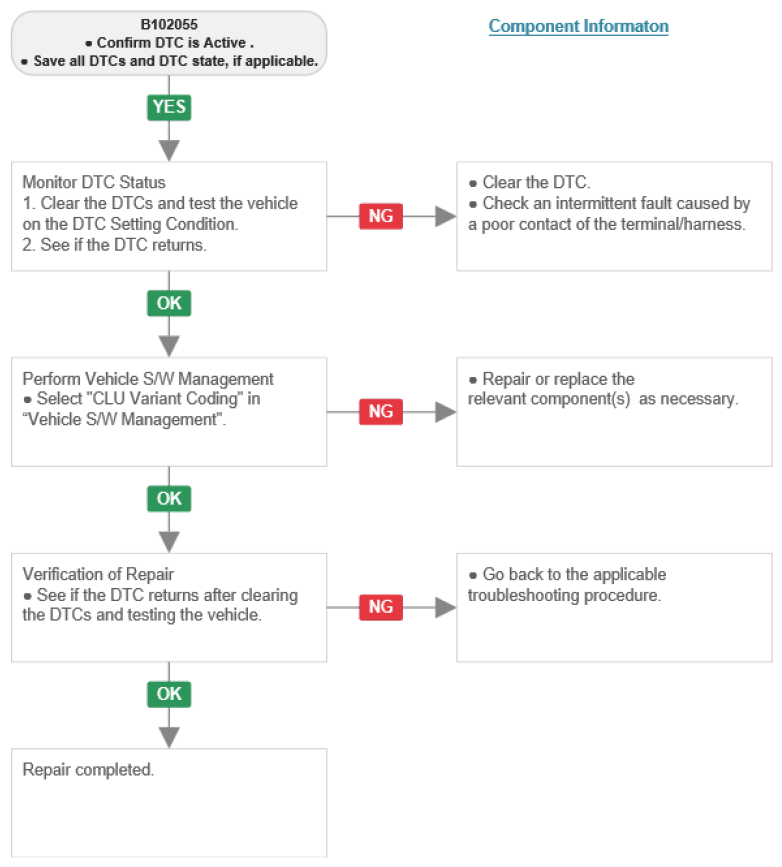

Diagnostic Flowchart

WARNING: This page is about a different car, the 2023 Hyundai Palisade. However, it is still accessible from the selected car via links, so may be relevant.
G15500672Courtesy of HYUNDAI MOTOR AMERICA
