Repair Procedures: Removal

WARNING: This page is about a different variant/trim than selected.
  1. Remove the coupling assembly.

    (Refer to "REMOVAL ")

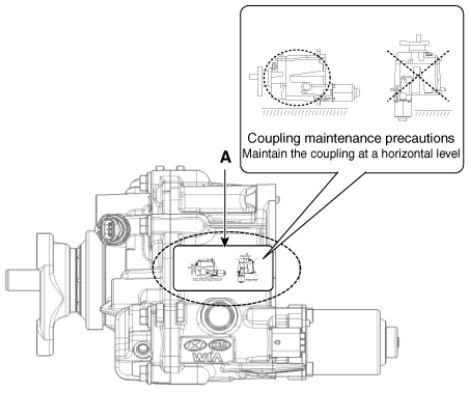

    NOTE:
    • Keep it level with the sticker (A) on the top of the coupling.
      G14424457Courtesy of HYUNDAI MOTOR AMERICA

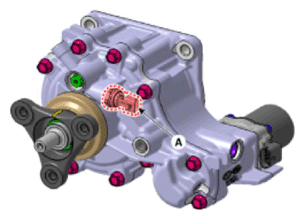

  2. Remove the pressure sensor (A).
    NOTE:
    • Keep going horizontal state to prevent leaks during remove the pressure sensor.

    Tightening torque:

    10.8 - 14.7 N.m (1.1 - 1.5 kgf.m, 8.0 - 10.8 lb-ft)

    G14424458Courtesy of HYUNDAI MOTOR AMERICA
    G14424459Courtesy of HYUNDAI MOTOR AMERICA
