Components & Components Location: Components: 4WD

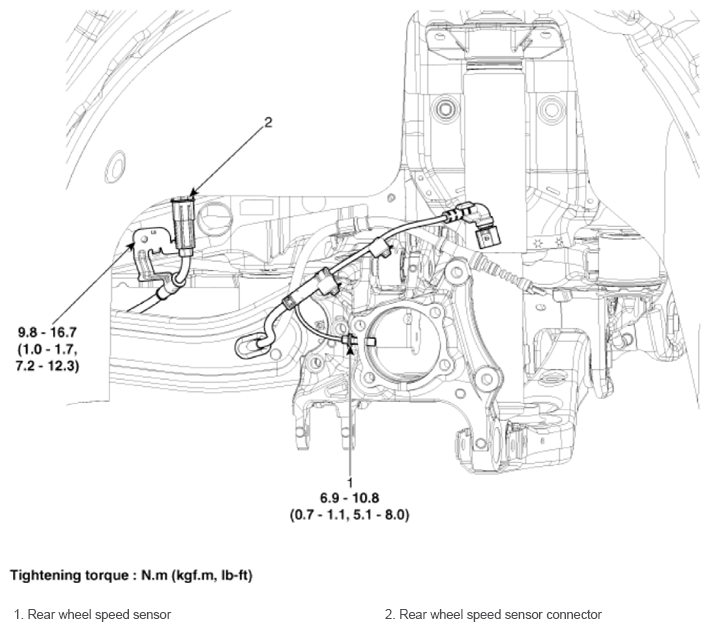

Fig 1: Rear Wheel Speed Sensor Components Location With Torque Specifications (4WD)
G14424713Courtesy of HYUNDAI MOTOR AMERICA
