Tailgate Open Switch

  1. Disconnect the negative (-) battery terminal.
  2. Remove the tailgate back panel.

    (Refer to Body - "TAIL GATE BACK PANEL ")

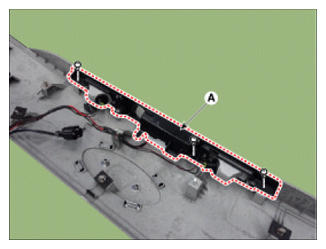

  3. Remove the tailgate switch assembly (A).
    G14427247Courtesy of HYUNDAI MOTOR AMERICA

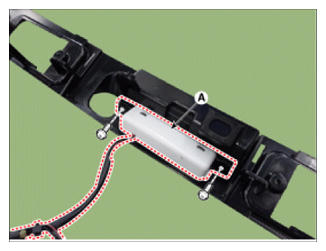

  4. Remove the tailgate open switch (A) after loosening mounting screws.
    G14427248Courtesy of HYUNDAI MOTOR AMERICA
