Smart Key Smart Key Code Saving

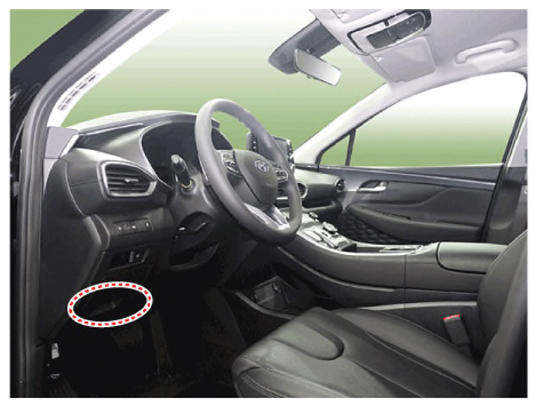

  1. Connect the DLC cable of diagnostic tool to the data link connector (16 pins) in driver side crash pad lower panel, turn the power on diagnostic tool.
    G14539716Courtesy of HYUNDAI MOTOR AMERICA

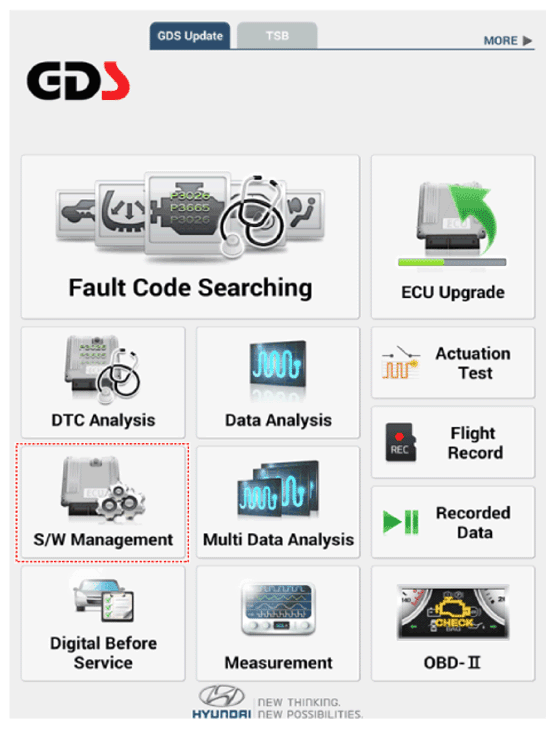

  2. Select the 'S/W Management' and 'Car model'.
    G14539717Courtesy of HYUNDAI MOTOR AMERICA

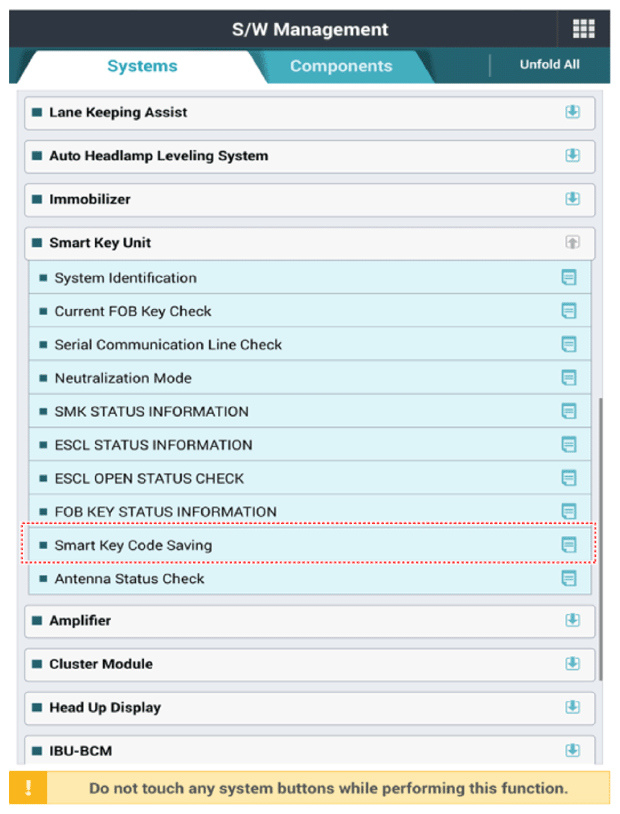

  3. Select the 'Smart Key Unit' and 'Smart Key Code Saving'.
    G14539718Courtesy of HYUNDAI MOTOR AMERICA

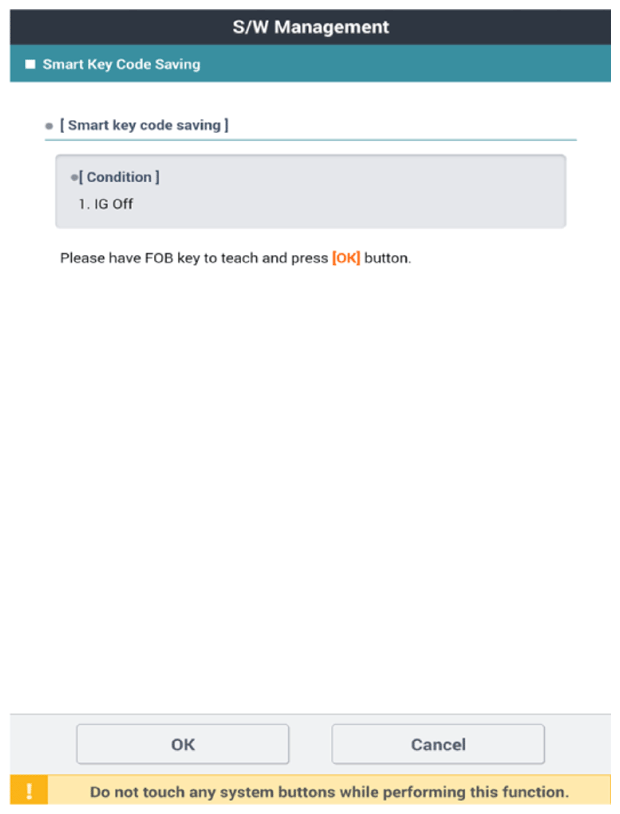

  4. Follow the instructions on the screen.
G14539719Courtesy of HYUNDAI MOTOR AMERICA
