Repair Procedures: Removal
- Remove the floor console upper cover.
(Refer to Body (Interior and Exterior) - "FLOOR CONSOLE ")

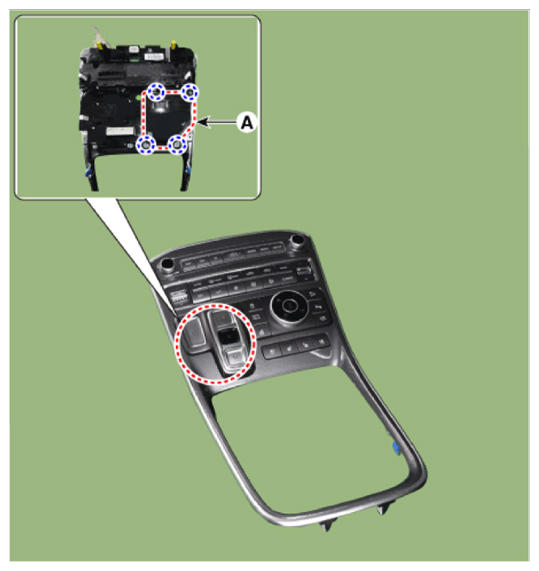

- Loosen the screw and then removing the electric shift button module (A).

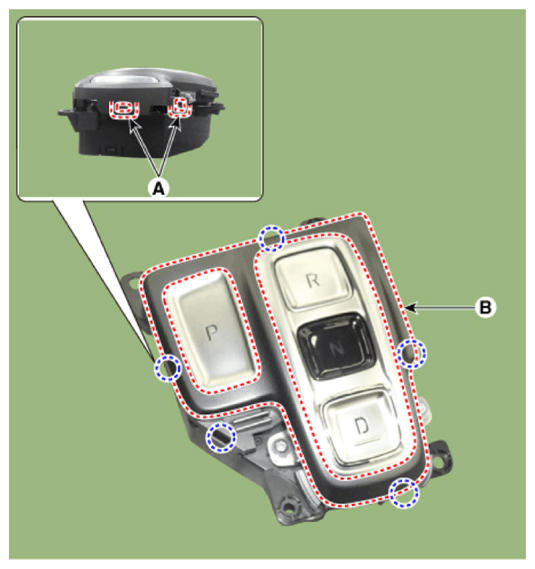

- Release the lock (A) using a tool and then removing the upper cover (B).

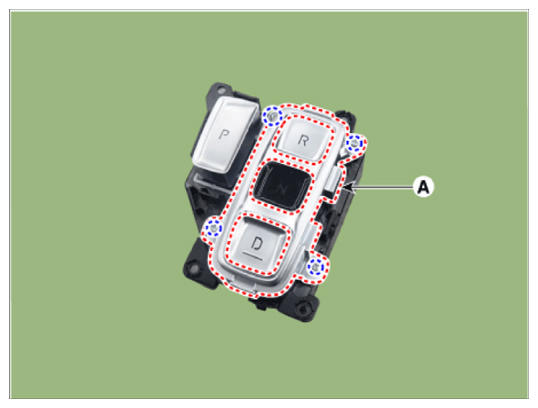

- Loosen the screw and then removing the bezel (A).
