Repair Procedures: Removal

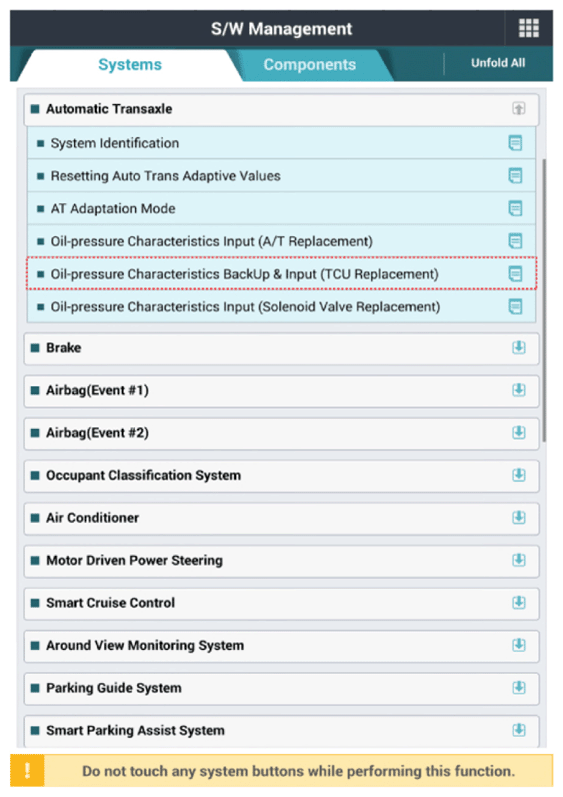

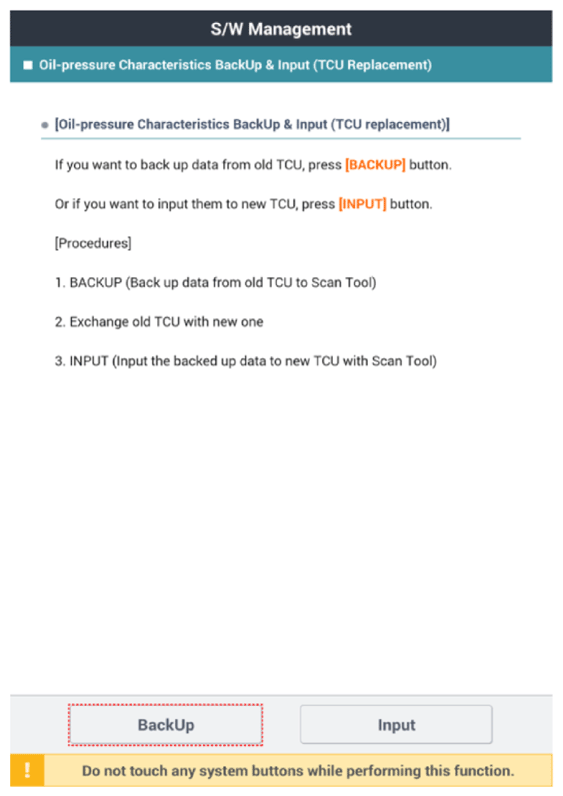

  1. Perform the oil pressure characteristics backup procedure using the diagnostic tool when replacing with a new TCM.
    G14534664Courtesy of HYUNDAI MOTOR AMERICA
    G14534665Courtesy of HYUNDAI MOTOR AMERICA
  2. Turn ignition switch OFF and disconnect the negative (-) battery cable.
  3. Remove the air cleaner assembly.

    (Refer to Engine Mechanical System - "AIR CLEANER ")

  4. Remove the TCM.

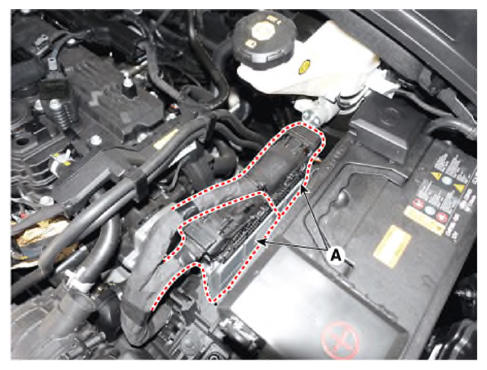

    1. Disconnect the TCM connectors (A).
      G14534666Courtesy of HYUNDAI MOTOR AMERICA

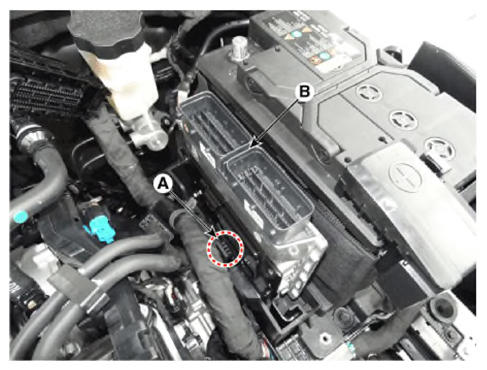

    2. Pull the clip (A) and then removing the TCM (B).
      G14534667Courtesy of HYUNDAI MOTOR AMERICA
