Repair Procedures: Removal
- Turn the ignition switch OFF and disconnect the battery negative (-) terminal.
- Remove the air cleaner assembly.
(Refer to Engine Mechanical System - "AIR CLEANER ")

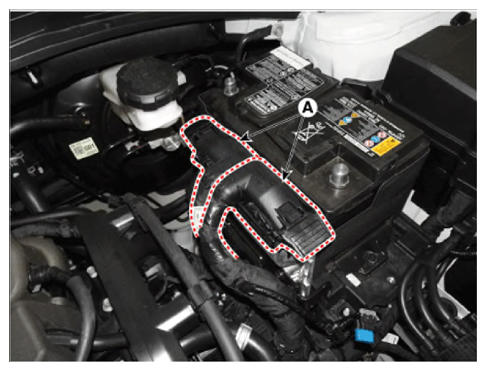

- Disconnect the ECM connector (A).

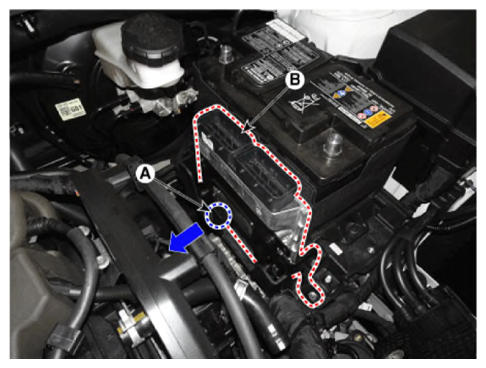

- Release the fixing hook (A), and then removing the ECM (B).

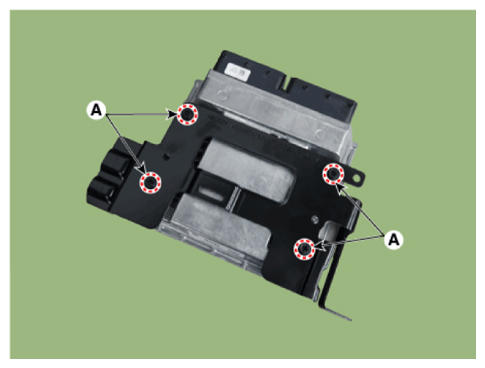

- Remove the ECM after loosening the mounting bolts (A).
Tightening Torque:
6.9 - 8.8 N.m (0.7 - 0.9 kgf.m, 5.1 - 6.5 lb-ft)
