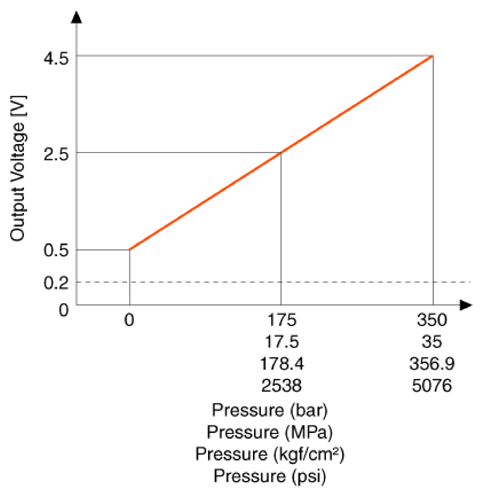

Rail Pressure Sensor (RPS): Specifications: Specification

Pressure Output Voltage (V) [Vref = 5V]
bar [MPa (kgf/cm2 , psi)]
0 0 (0, 0) 0.5
175 17.5 (178.5, 2538.2) 2.5
350 35 (356.9, 5076.3) 4.5
G14534235Courtesy of HYUNDAI MOTOR AMERICA
